Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
Communication can meet the user’s requirements such as RS-485 (standard), Internet of Things connection, etc.;
Energy saving – self-developed EBZ200-2 multi-core driver, compared with the fixed cycle mode, can save more than 10% of comprehensive energy consumption;
Dew point energy-saving control (optional), in the working condition of load fluctuation, it can extend the adsorption time and reduce the comprehensive energy consumption by more than 30%;
Customized high-performance adsorbent, 20% filling margin;
High-performance pneumatic valve, high-efficiency cooler designed by HTFS software, reliable performance and long life;
Metal control gas pipeline, beautiful and generous;
Specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
Siemens touch screen programmable controller, dynamic monitoring of operation process, signal acquisition includes: air outlet temperature, heating temperature, regeneration exhaust temperature, A/B tower pressure blower pressure, dew point temperature (optional);

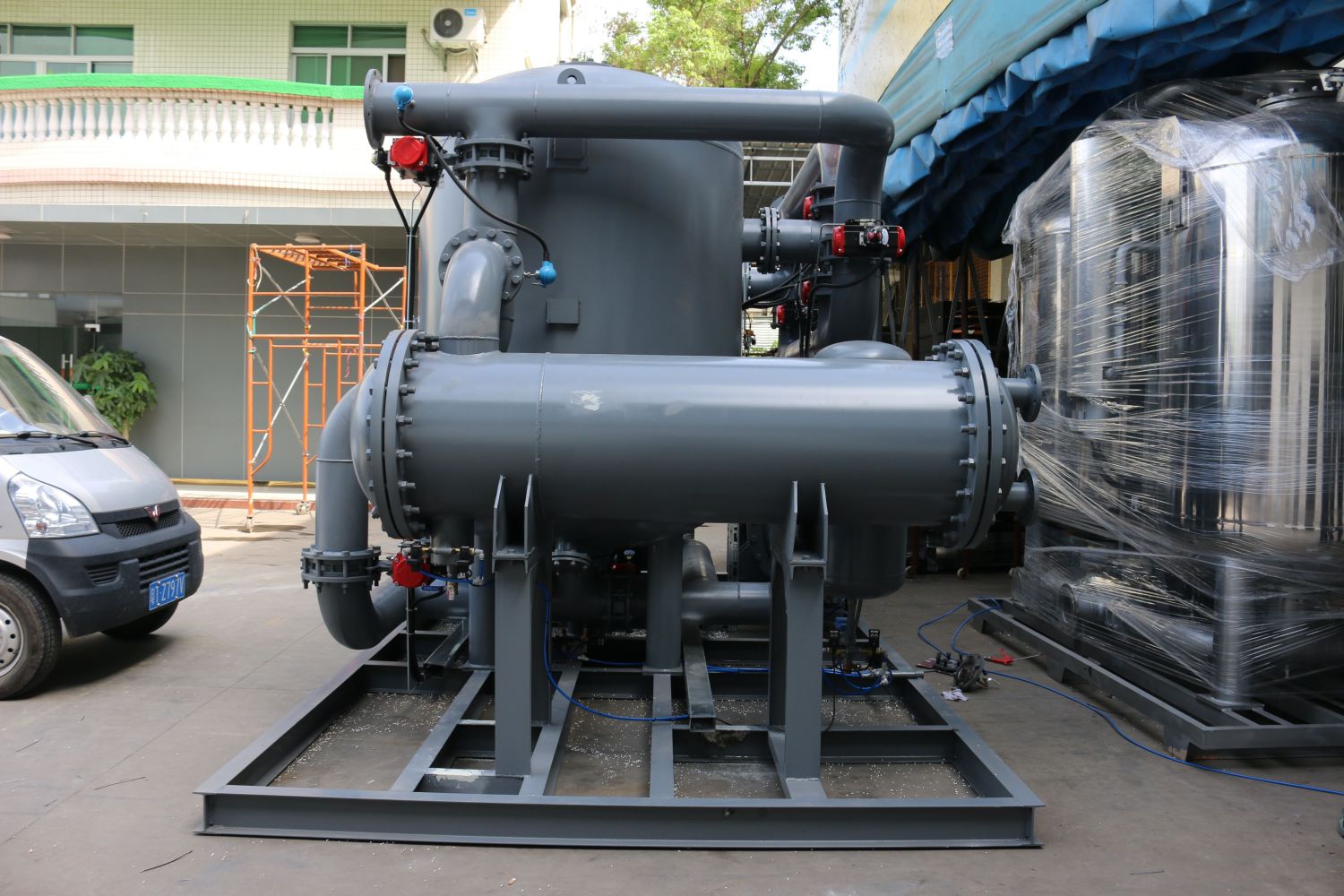

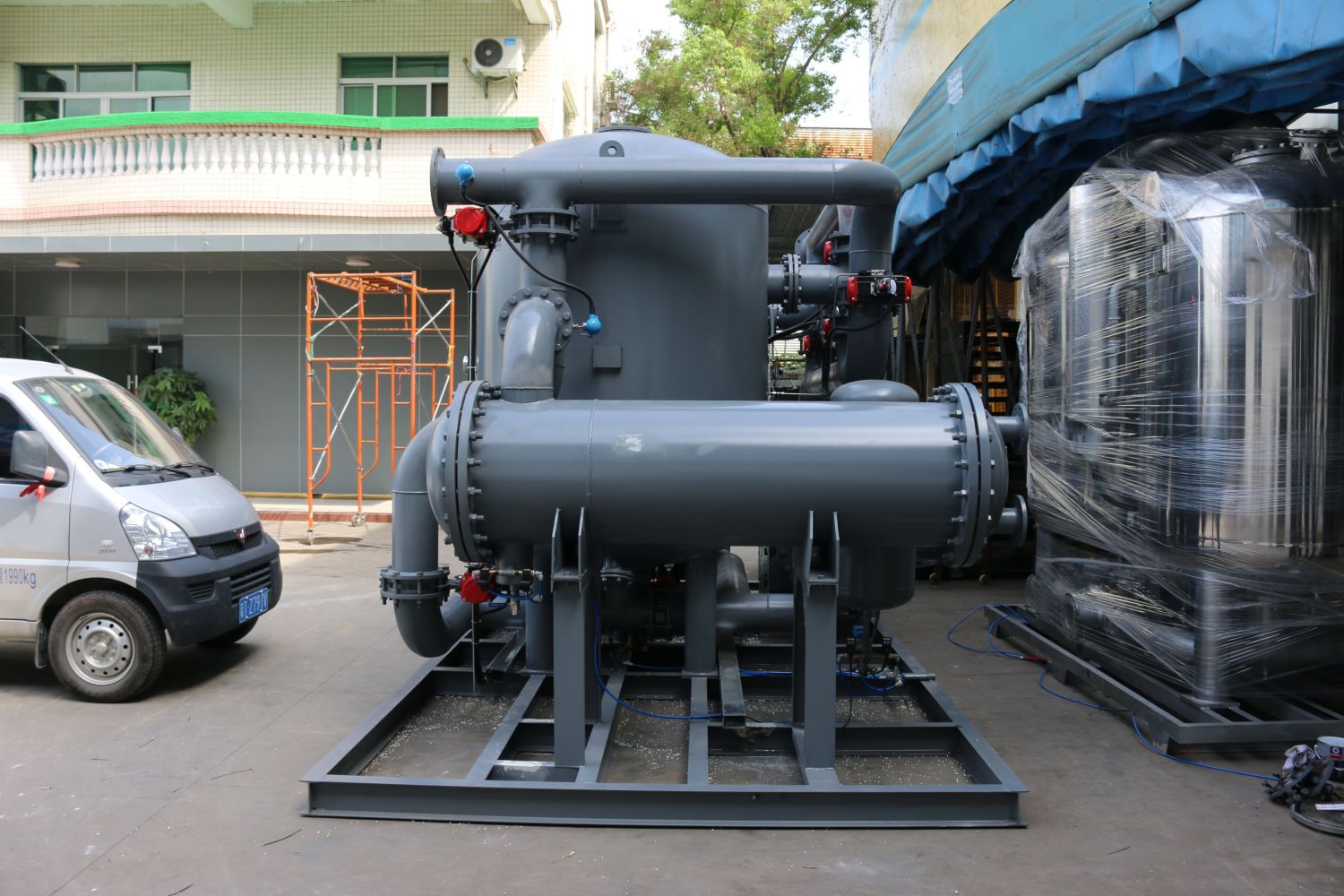

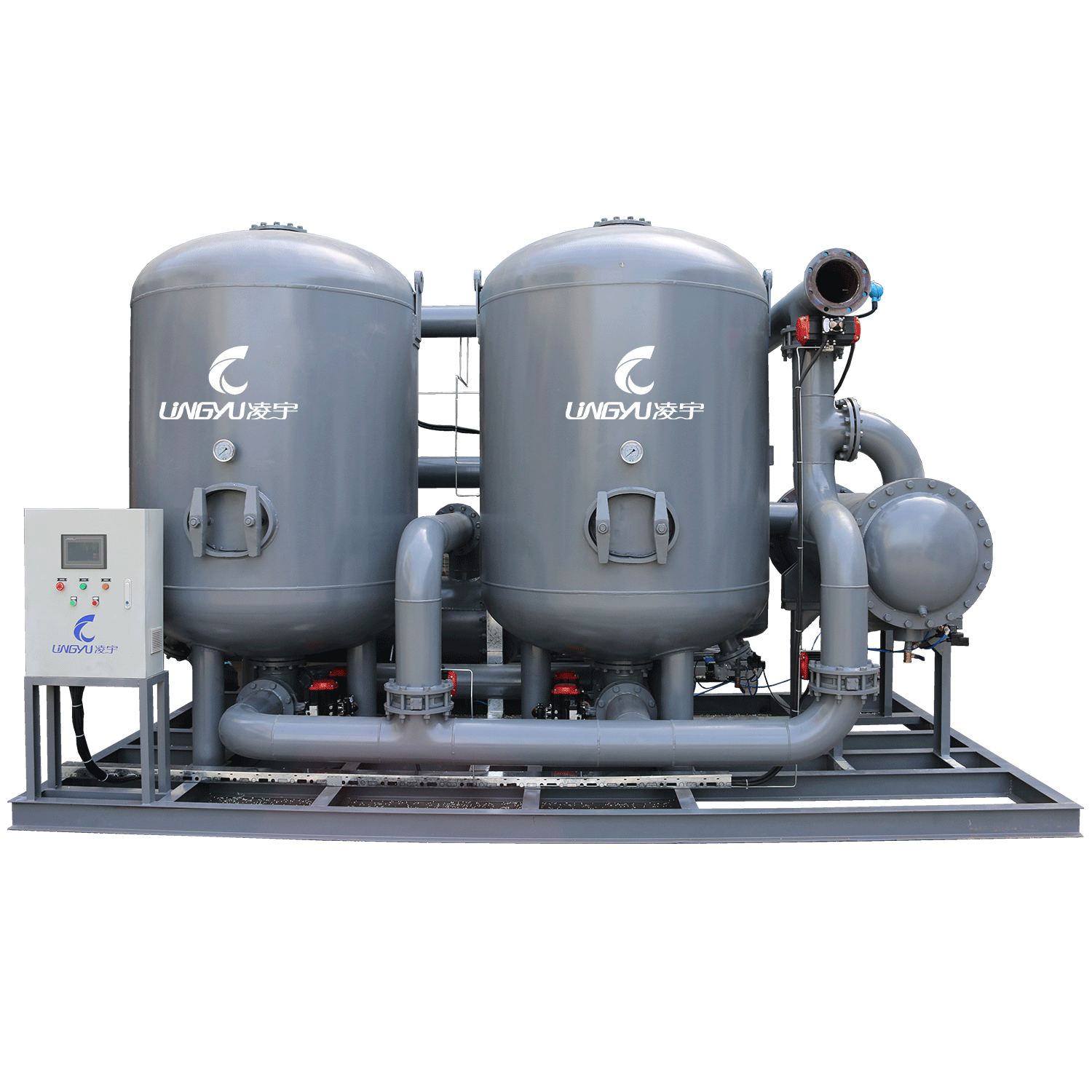

The HOC-E Efficient Adsorption Dryer is a high-performance compressed air dryer designed for industrial applications that require stable low dew point air and reduced energy consumption. It uses zero-gas-consumption waste heat regeneration technology, which recovers the high-temperature air discharged from the compressor to regenerate the adsorbent.
During operation, moisture in the compressed air is removed by the adsorbent inside the drying tower. The waste heat from the compressor discharge air is then used during the heating and regeneration process to restore the adsorbent’s drying capacity. During the heating, regeneration, and cooling stages, the system does not consume finished compressed air, which greatly improves overall energy efficiency.
With this heat recovery design, the HOC-E dryer provides reliable low-dew-point compressed air while reducing operating costs, making it an ideal solution for high-temperature and high-volume industrial compressed air systems.
To ensure stable drying performance and reliable long-term operation, the HOC-E Efficient Adsorption Dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a properly designed compressed air system with stable inlet conditions and suitable cooling capacity. Both air-cooled and water-cooled configurations are available to match different industrial environments and project requirements.
| Model | Processing Capacity (m³/min) | Cooling Water Flow (T/h) | Cooling Water Connection | Gas Connection | Dimensions (L × W × H mm) |
|---|---|---|---|---|---|
| HOC-E100 | 13.5 | 5.8 | G1.2″ | DN50 | 1600 × 1100 × 2380 |
| HOC-E120 | 17.0 | 7.3 | G1.2″ | DN65 | 1750 × 1200 × 2450 |
| HOC-E150 | 21.5 | 9.2 | G1-12″ | DN80 | 1850 × 1300 × 2480 |
| HOC-E180 | 25.0 | 10.8 | G1-12″ | DN80 | 1900 × 1350 × 2580 |
| HOC-E200 | 28.5 | 12.3 | G1-12″ | DN80 | 1900 × 1350 × 2760 |
| HOC-E250 | 32.0 | 13.8 | G2″ | DN80 | 2000 × 1450 × 2630 |
| HOC-E300 | 37.0 | 16.0 | G2″ | DN100 | 2200 × 1500 × 2700 |
| HOC-E400 | 45.0 | 19.4 | G2.5″ | DN100 | 2200 × 1600 × 2880 |
| HOC-E500 | 55.0 | 23.7 | G2.5″ | DN125 | 2400 × 1700 × 2850 |
| HOC-E600 | 65.0 | 28.0 | G2.5″ | DN125 | 2650 × 1800 × 2800 |
| HOC-E700 | 75.0 | 32.3 | G2.5″ | DN125 | 2650 × 1800 × 2900 |
| HOC-E1000 | 110 | 47.3 | DN100 | DN150 | 3500 × 2300 × 2900 |
| HOC-E1600 | 160 | 69.0 | DN125 | DN200 | 4450 × 2450 × 2950 |
| HOC-E2600 | 260 | 112 | DN150 | DN250 | 5300 × 2900 × 3000 |
Note: Custom solutions are available for air volumes above 260 m³/min or for special requirements related to materials, temperature, and connection sizes.
The HOC-E Efficient Adsorption Dryer is well suited for large industrial compressed air systems in the Middle East that require stable low dew point air, lower regeneration air consumption, and high-temperature inlet air handling. In regional operating conditions shaped by high temperatures, dust exposure, and strong pressure on water and energy resources, this dryer is better positioned for major industrial plants, central utility systems, and high-capacity compressor installations rather than for small general-purpose air systems.
For Middle East installations, this model is best suited to large indoor industrial systems with stable high-temperature inlet air and dependable utility support. Because regional conditions often include heat extremes, dust exposure, and water stress, proper system design, filtration, and cooling management are essential to maintain stable dew point performance and long-term reliability. In practice, this dryer is best positioned as a central low-dew-point solution for high-capacity industrial air systems where energy efficiency is a major purchasing priority.
