Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
Stable outlet dew point
Minimum regeneration gas consumption
Long service life of adsorbent
Easy maintenance
High safety
High reliability
Adjustable regeneration gas consumption
Optional dew point monitoring and control system

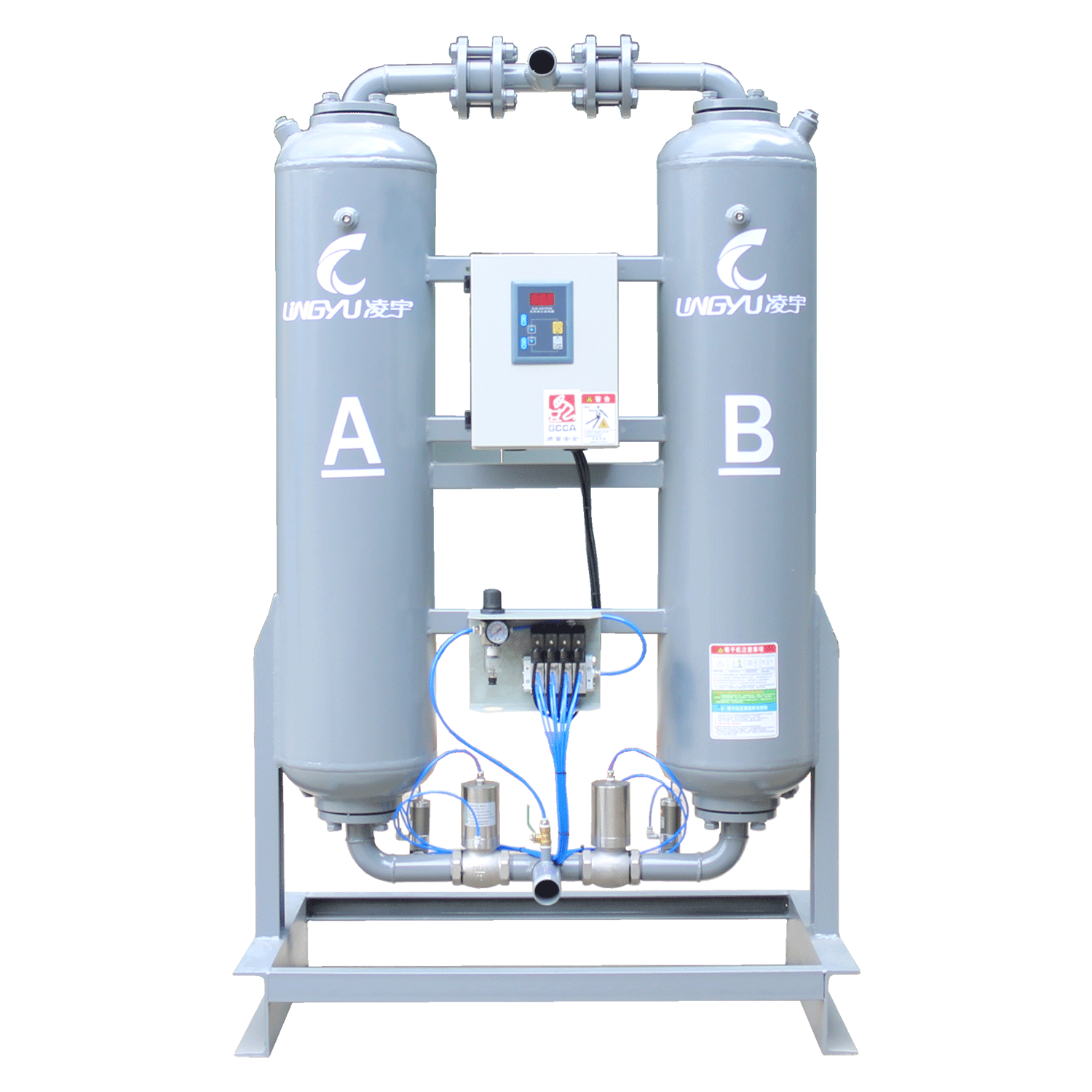

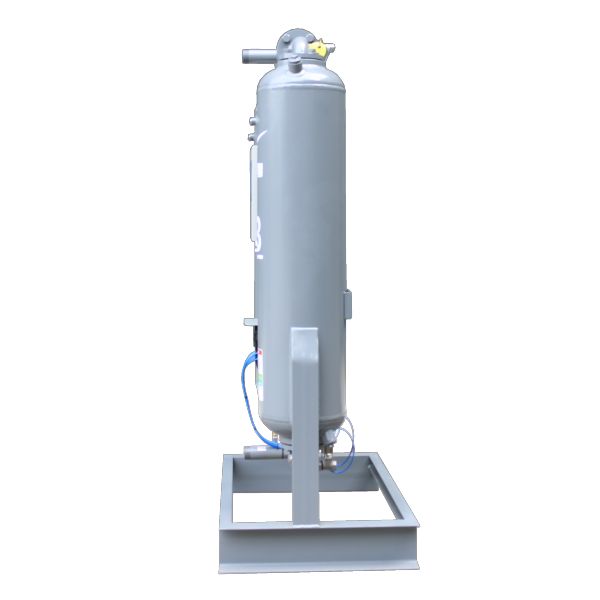

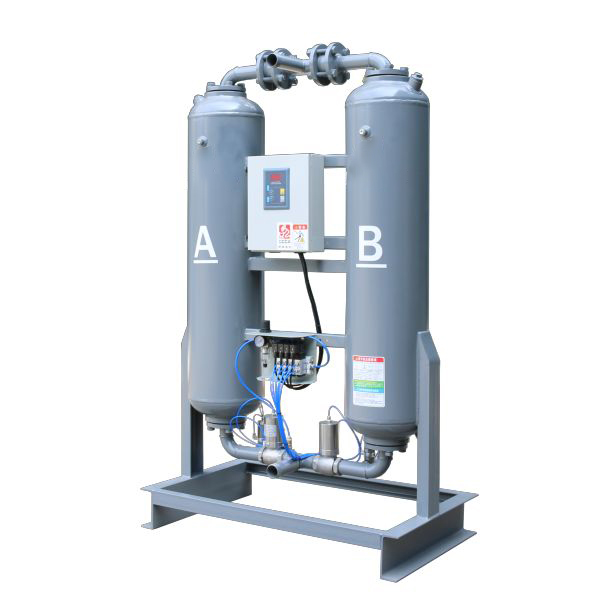

The CH Series Heatless Regeneration Adsorption Dryer is designed to provide highly reliable compressed-air drying using the principle of pressure-swing adsorption (PSA). Filled with premium activated alumina or molecular sieve adsorbents, the dryer effectively removes moisture from compressed air and delivers a stable pressure dew point as low as –40°C to –70°C.
This series is widely used in industries requiring clean, dry, and stable compressed air, such as chemical plants, petroleum processing, food production, electronics, textile manufacturing, laboratories, and precision equipment systems.
Through optimized structure and high-efficiency airflow design, the CH Series reduces energy consumption, minimizes equipment wear, and ensures long-term operating stability with excellent economic performance.
Applicable Fluids: Compressed air, non-corrosive air
Rated Inlet Pressure: 0.7 MPa (0.6–1.0 MPa optional; customizable upon request)
Rated Inlet Temperature: 10°C–30°C (maximum ≤ 40°C)
Average Regeneration Gas Consumption: 8%–14%
Outlet Pressure Dew Point: –50°C to –20°C
Adsorbent: High-quality activated alumina
Rated Ambient Temperature: 35°C (operating range 2°C–45°C)
Stable dew point performance from –50°C to –20°C
Low regeneration air consumption to reduce operating cost
Durable activated alumina for long adsorption cycles
Compact design with easy maintenance structure
Suitable for continuous, heavy-duty industrial applications
No external heating required, reducing energy usage
| Processing Capacity (m³/min) | Voltage (V/Hz) | Power (kW) | Air Inlet/Outlet | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| 3.8 | 220/50 | 0.1 | G1 1/2″ | 175 | 840×570×1690 |
| 6.5 | 220/50 | 0.1 | G1 1/2″ | 310 | 1020×610×1710 |
| 10.5 | 220/50 | 0.1 | G2″ | 430 | 1160×680×1900 |
| 13.5 | 220/50 | 0.1 | G2″ | 522 | 1160×680×2200 |
| 17.0 | 220/50 | 0.1 | DN65 | 580 | 1195×720×2175 |
| 21.5 | 220/50 | 0.1 | DN80 | 720 | 1280×980×2310 |
| 25.0 | 220/50 | 0.1 | DN80 | 820 | 1350×930×2450 |
| 28.5 | 220/50 | 0.1 | DN80 | 1000 | 1460×1060×2320 |
| 32.0 | 220/50 | 0.1 | DN80 | 1100 | 1460×1060×2510 |
| 37.0 | 220/50 | 0.1 | DN100 | 1180 | 1580×1080×2460 |
| 41.5 | 220/50 | 0.1 | DN100 | 1350 | 1700×1060×2730 |
| 45.0 | 220/50 | 0.1 | DN100 | 1420 | 1765×1160×2550 |
| 50.0 | 220/50 | 0.1 | DN100 | 1550 | 1765×1160×2750 |
| 55.0 | 220/50 | 0.1 | DN100 | 1670 | 1825×1150×2690 |
| 60.0 | 220/50 | 0.1 | DN100 | 1790 | 1825×1150×2790 |
| 65.0 | 220/50 | 0.1 | DN125 | 2000 | 2040×1240×2820 |
| 70.0 | 220/50 | 0.1 | DN125 | 2120 | 2040×1240×2920 |
| 75.0 | 220/50 | 0.1 | DN125 | 2320 | 2136×1240×2930 |
| 85.0 | 220/50 | 0.1 | DN125 | 2500 | 2210×1350×2970 |
| 95.0 | 220/50 | 0.1 | DN150 | 2850 | 2330×1430×3250 |
| 110.0 | 220/50 | 0.1 | DN150 | 3000 | 2450×1430×2980 |
| 130.0 | 220/50 | 0.1 | DN150 | 4300 | 2610×1580×3055 |
| 150.0 | 220/50 | 0.1 | DN200 | 5100 | 2900×1400×3211 |
Note: Customized models are available for air flow above 150 m³/min or when special materials, specifications, or inlet temperature requirements are needed. All data is subject to change without prior notice.
The CH Series Heatless Regeneration Adsorption Dryer is well suited for Middle East industrial environments that require stable low dew point compressed air, simple regeneration, and reliable continuous-duty performance. With heatless regeneration, durable activated alumina, and stable low dew point operation, it is especially suitable for industrial systems operating in hot, dry, and dust-prone conditions where moisture control is critical to equipment protection and process stability. Regional conditions such as heat extremes, sand and dust storms, and water scarcity make dependable low-dew-point air particularly important for control air and utility air systems.
For Middle East installations, this heatless adsorption dryer should be used with proper aftercooling, moisture separation, and filtration, especially where compressor discharge temperatures may rise in summer. Because the rated inlet temperature is more restrictive than many general-purpose dryers, stable upstream air treatment and good indoor ventilation are important for reliable long-term operation. This model is best positioned as a low dew point solution for instrument air, control air, analytical air, and critical utility air systems, rather than as a general commercial dryer.
