Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
Applicable fluids: compressed air, non-corrosive air
Rated inlet pressure: 0.7MPa (0.6MPa~1.0MPa is allowed,other pressure levels are available for customization)
Rated inlet temperature: 10℃~30℃ (limit inlet temperature: ≤40℃)
Inlet air dew point: ≤15℃
Outlet pressure dew point: ≤-20℃ (-40℃ optional)
Adsorbent: activated alumina + high-performance molecular sieve
Rated ambient temperature: 35℃ (2℃~45℃ can be used)

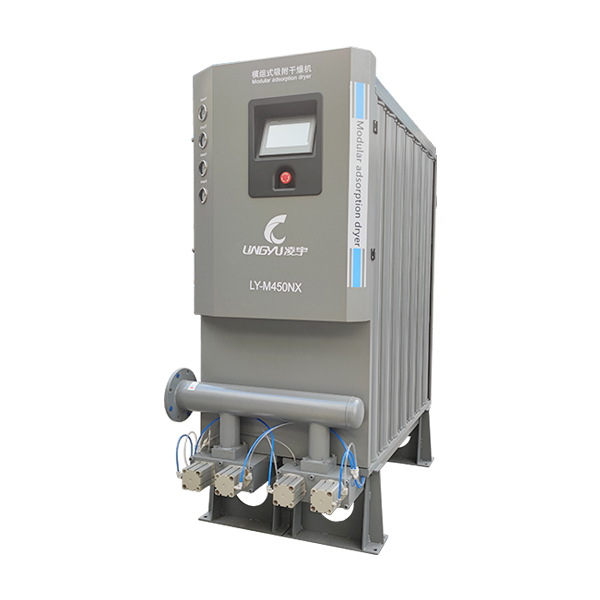

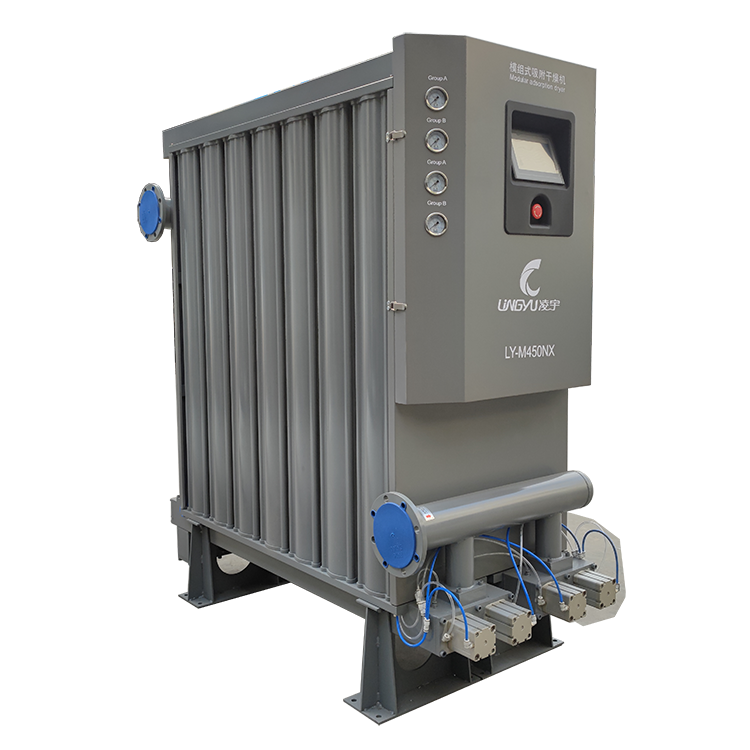

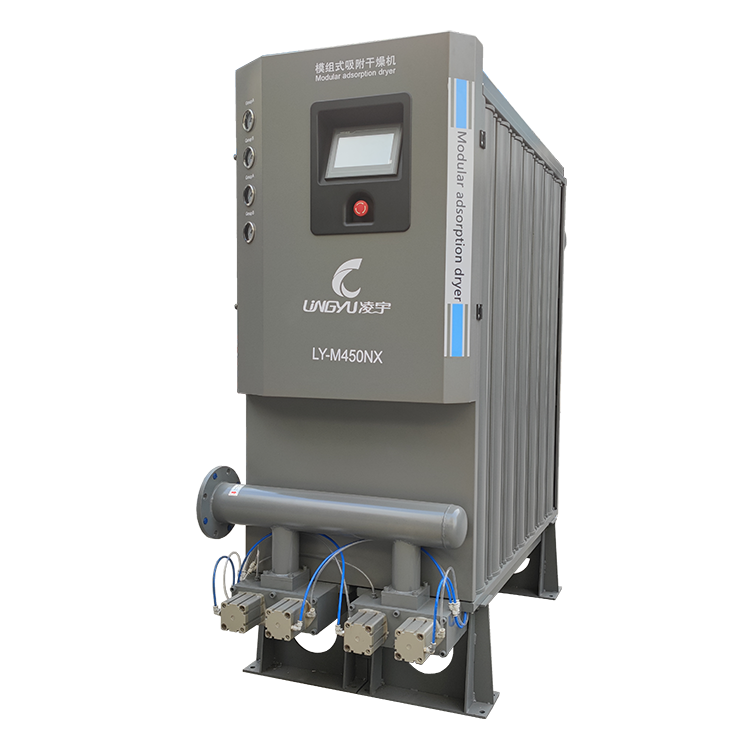

The Modular Adsorption Air Dryer is designed to deliver clean, dry, and reliable compressed air through an energy-saving adsorption regeneration process. During operation, moisture in the compressed air is absorbed by high-quality desiccant, while a controlled portion of the dried air is used to regenerate the adsorbent and restore its drying capacity. With regeneration gas consumption maintained at only 5%–8%, the system achieves stable performance while reducing overall operating costs.
To ensure air quality, all compressed-air contact surfaces are treated with oxidation and rust prevention technology, which effectively minimizes the risk of secondary contamination. This makes the dryer especially suitable for industries with strict air quality requirements, such as food and pharmaceutical production.

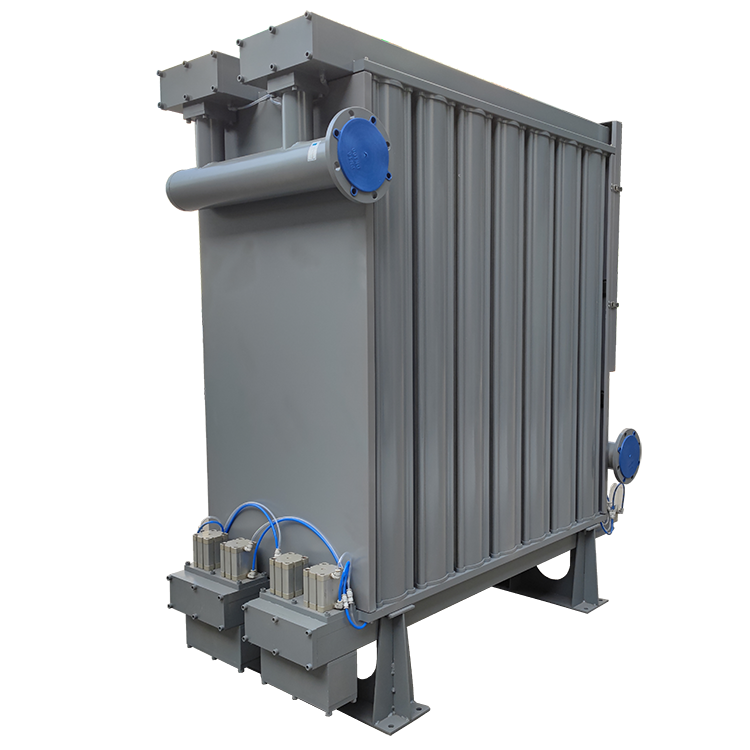

The dryer adopts an integrated aviation-grade magnesium-aluminum extruded alloy structure, combining compact size, light weight, and high durability. Its one-piece modular design allows it to pass through standard doors easily and makes installation more flexible in different working environments.
To ensure stable performance and long service life, the modular adsorption air dryer is designed with the following technical features and operating advantages:
| Processing Capacity (m³/min) | Connection Size | Equipment Weight (kg) | Power Supply and Voltage (V/Hz) | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 1.5 | G1″ | 35 | 220/50 | 460 × 300 × 752 |
| 2.5 | G1″ | 60 | 220/50 | 460 × 300 × 1246 |
| 3.8 | G1″ | 70 | 220/50 | 460 × 300 × 1546 |
| 6.5 | G1-2″ | 190 | 220/50 | 400 × 778 × 1735 |
| 10.5 | G2″ | 285 | 220/50 | 400 × 952 × 1735 |
| 13.5 | G2-12″ | 375 | 220/50 | 400 × 1126 × 1735 |
| 17.0 | G2-2″ | 470 | 220/50 | 400 × 1300 × 1735 |
| 21.5 | G2-2″ | 565 | 220/50 | 400 × 1474 × 1735 |
| 25.0 | G2-12″ | 660 | 220/50 | 400 × 1648 × 1735 |
| 28.5 | DN80 | 755 | 220/50 | 762 × 1126 × 1760 |
| 37.0 | DN100 | 940 | 220/50 | 762 × 1300 × 1760 |
| 41.5 | DN100 | 1130 | 220/50 | 762 × 1474 × 1760 |
| 50.0 | DN100 | 1320 | 220/50 | 762 × 1648 × 1760 |
| 55.0 | DN125 | 1510 | 220/50 | 762 × 1884 × 1760 |
Note: For air volumes above 55 m³/min, or for special requirements related to specifications, materials, or temperature, please contact our company or dealer for technical support. The above data is for reference only and may change without prior notice. For other specifications, please contact our company directly.
The Modular Adsorption Air Dryer is well suited for Middle East industrial environments that require clean compressed air, compact installation, low maintenance, and flexible point-of-use deployment. In regional conditions that often include high temperatures, dust exposure, and space constraints in retrofit or indoor production areas, its integrated modular structure and treated compressed-air contact surfaces make it especially suitable for clean production support and distributed compressed air applications.
For Middle East projects, this dryer is best positioned for indoor installations requiring clean air quality, flexible placement, and easy maintenance, rather than for very large centralized utility air stations. Because regional conditions often include high heat and dust exposure, proper pre-filtration and stable inlet conditions are especially important to protect the adsorbent, maintain air quality, and reduce contamination risks in food, pharmaceutical, and clean manufacturing environments.
