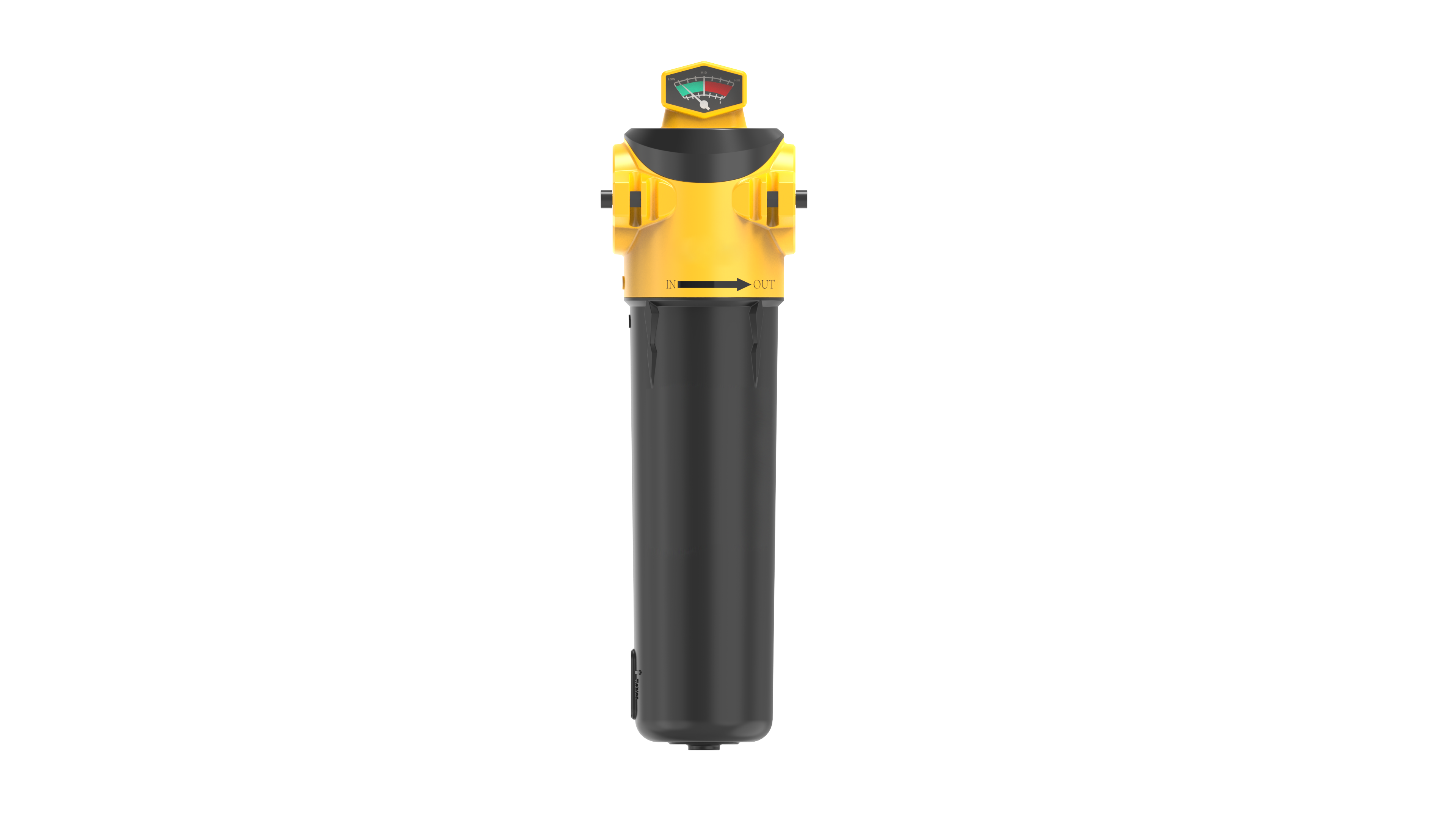

High-quality shell material,exquisite appearance design,sophisticated threadprocessing technology;
The differential pressure gauge indicates thetimeto replace thefiter elementat a glance;
The exterior is sprayed withepoxy resin powder to improve durabiityand corrosionresistance;
The casingls marked withthe airflow direction,and thefiter tube head and tubebodyare connected by bayonetypefor easy and quickinstallation andmaintenance;
The flow path is enlargedto reduce pressuredropyReliable automatic draining device;
Using imported filtermaterial,thefiltration accuracy is high.
Our high-performance compressed air filters provide precise particle removal and ultra-low residual oil content for industrial and laboratory applications. Designed for different levels of air purification, these filters ensure clean, dry, and oil-free compressed air, improving the performance and longevity of downstream equipment.
| Grade | Particle Removal | Residual Oil Content |
|---|---|---|
| AO Grade | ≤ 1.0 μm | ≤ 3.0 ppm |
| AX Grade | ≤ 0.01 μm | ≤ 0.05 ppm |
| AA Grade | ≤ 0.1 μm | ≤ 0.1 ppm |
| ACS Grade | ≤ 0.01 μm | ≤ 0.003 ppm |
AO Grade: General industrial air filtration, removes larger particles and oil droplets.
AX Grade: High-purity air filtration for sensitive pneumatic systems.
AA Grade: Fine filtration for precise machinery and instrumentation.
ACS Grade: Ultra-high purity air for critical applications such as electronics, pharmaceuticals, and medical air supply.
ModelCapacity (m³/min)Dimensions (L×W×H mm)Interface DiameterFilter Element ModelYAF-D015AO/AA/AX/ACS1.596×235RC 3/4”(Grade)-015K×1LYAF-D024AO/AA/AX/ACS2.596×235RC 1”(Grade)-024K×1LYAF-D035AO/AA/AX/ACS3.840×310RC 1 1/2”(Grade)-035K×1YAF-D060AO/AA/AX/ACS6.540×410RC 1 1/2”(Grade)-060K×1LYAF-D090AO/AA/AX/ACS10.575×530C 2”(Grade)-090K×1YAF-D120AO/AA/AX/ACS13.575×530RC 2 1/2”(Grade)-120K×1LYAF-D150AO/AA/AX/ACS1775×815RC 2 1/2”(Grade)-150K×1LMAF-D220AO/AA/AX/ACS22240×724RC 3”(Grade)-220K×1LVAF-D240AO/AA/AX/ACS28.5240×724RC 3”(Grade)-240K×1
Our high-performance compressed air filters are well suited for Middle East operating environments, where compressed air systems often face high temperatures, airborne dust, and in some coastal areas higher humidity. Designed for different purification levels, these filters help improve compressed air quality, protect downstream equipment, and support more reliable operation across industrial, laboratory, medical, and process applications.
For Middle East projects, compressed air filters should be selected not only by flow capacity, but also by dust exposure, oil carryover risk, and required air purity level. In hot and dusty environments, multi-stage filtration is often more appropriate than relying on a single filter grade. For projects in healthcare, pharmaceutical, or high-purity electronics applications, higher-grade filtration such as AX or ACS should be matched to the required air quality standard.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
