Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

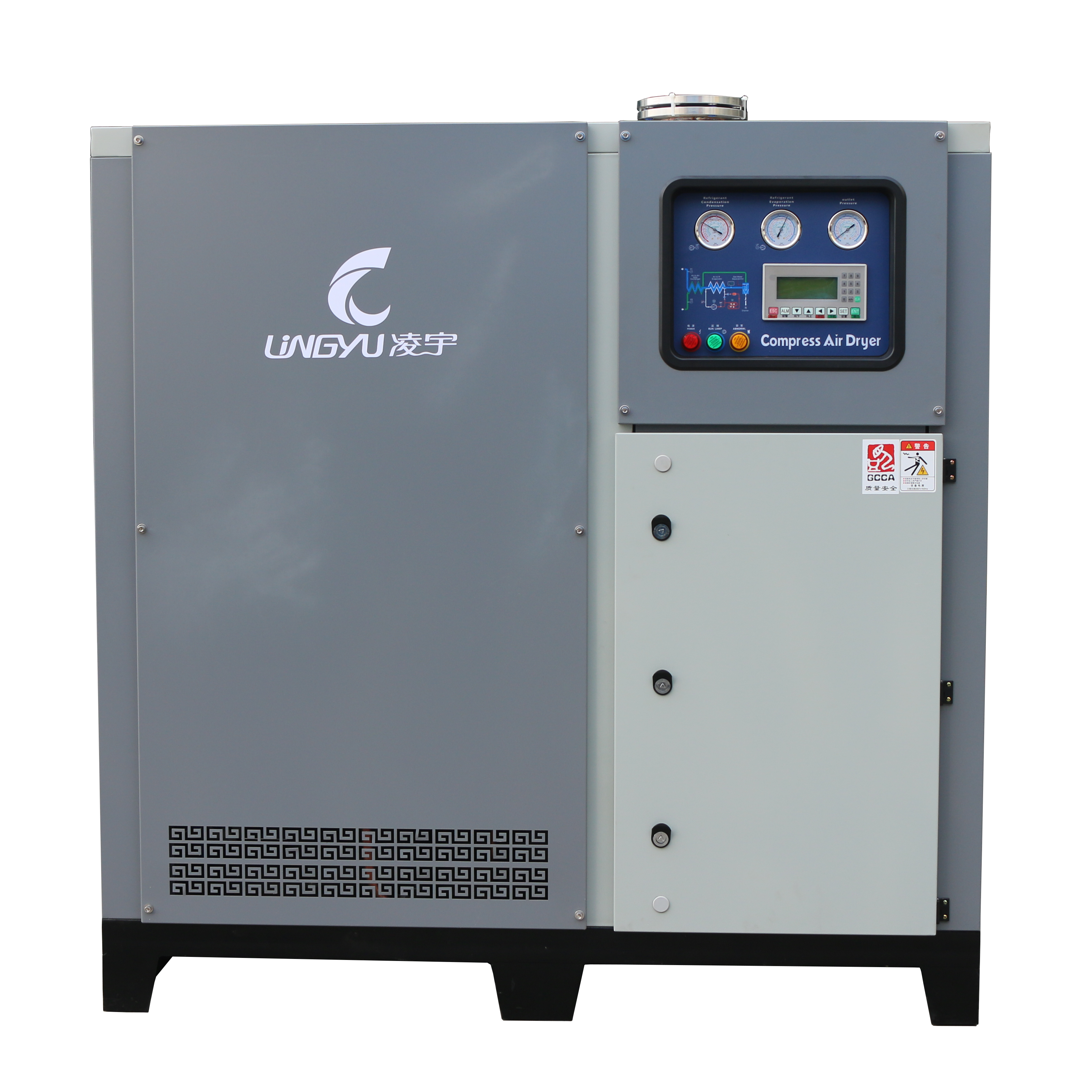

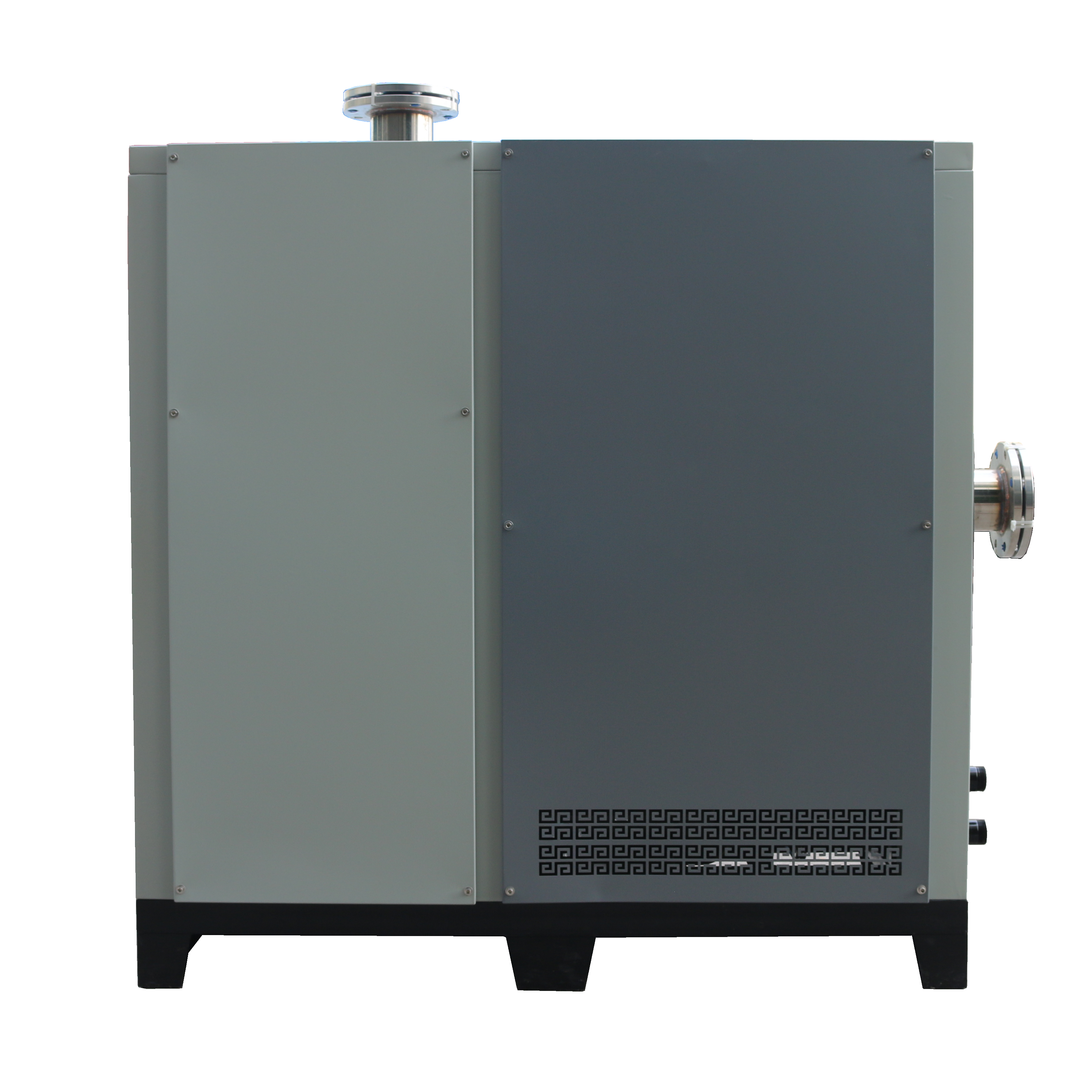

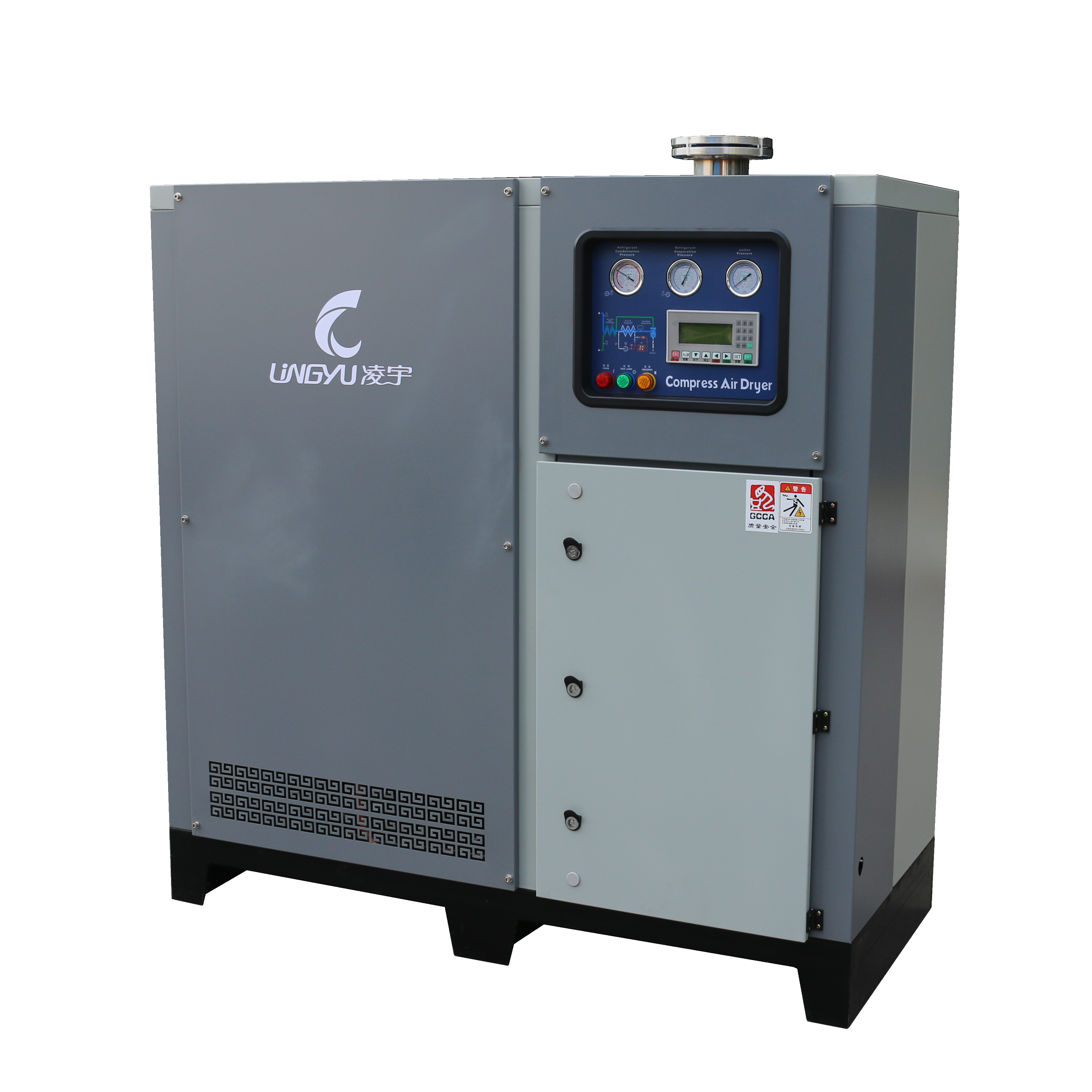

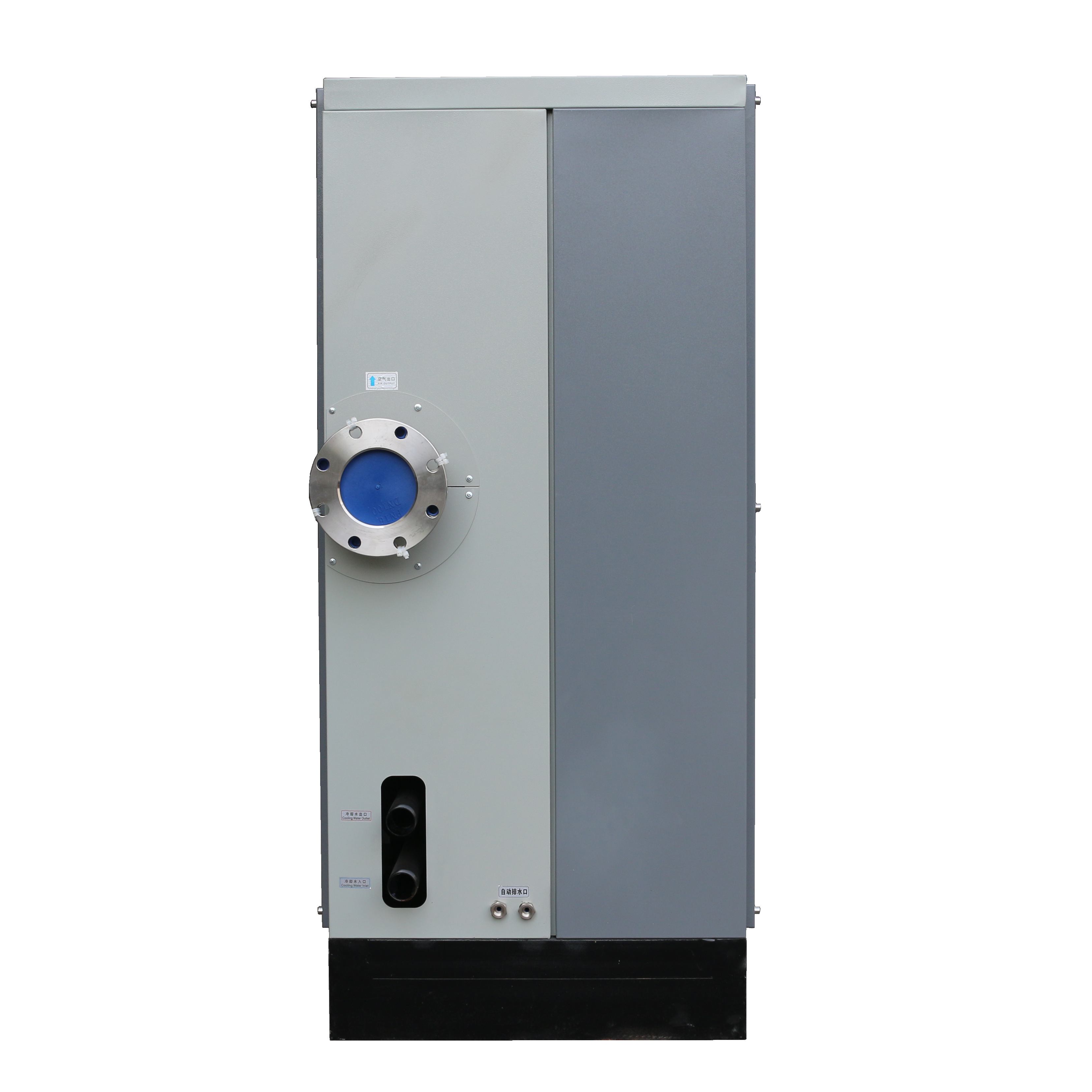

The 1340 SCFM refrigerated air dryer (water cooled) is a high-performance moisture removal system designed for industrial applications that demand clean and dry compressed air. Engineered for reliability and efficiency, this water-cooled model uses chilled water circulation to condense and remove moisture from compressed air streams with a rated capacity of 1340 SCFM.
Whether your facility operates in high-temperature environments or uses centralized water cooling systems, the 1340 SCFM refrigerated air dryer (water cooled) is your best solution for delivering constant dew point control and protection for downstream equipment.
✅ High Volume Capacity: Supports compressed air flow rates up to 1340 SCFM, ideal for large-scale operations.
✅ Water Cooled System: Efficient heat removal through water circulation, reducing electrical load and improving cooling performance in hot environments.
✅ Stable Dew Point Performance: Delivers consistent pressure dew point between 2–10°C (35.6–50°F).
✅ Energy Efficient: Lower power consumption than air-cooled units in environments with available cooling water.
✅ Compact Design: Smaller footprint compared to equivalent air-cooled models.
✅ Automatic Drain System: Timely removal of condensate to prevent internal water accumulation.
✅ Heavy-Duty Construction: Industrial-grade steel cabinet with rust-resistant finish.
The 1340 SCFM refrigerated air dryer (water cooled) is built for intensive-duty cycles and stable long-term operation.
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Cooling Water Inlet Temperature: ≤ 32°C (89.6°F)
Cooling Water Flow Rate: Approx. 80–100 L/min
Power Supply: 380V / 3Ph / 50Hz (customizable)
Installation Site: Indoor, clean, and ventilated area
Refrigerant: R407C / R134a (environmentally friendly)
| Model | 1340 SCFM Refrigerated Air Dryer (Water Cooled) |
|---|---|
| Rated Capacity | 1340 SCFM (Standard Cubic Feet per Minute) |
| Cooling Method | Water Cooled |
| Refrigerant | R407C / R134a |
| Max Operating Pressure | 10 bar |
| Pressure Dew Point | 2 – 10°C |
| Power Supply | 380V / 3Ph / 50Hz |
| Water Connection Size | 1″ BSP or customized |
| Air Inlet/Outlet Size | 3″ Flanged |
| Dimensions (L×W×H) | 1900 × 1100 × 1750 mm |
| Weight | 540 kg |
The 1340 SCFM refrigerated air dryer (water cooled) combines cooling efficiency with high flow capacity to meet the toughest industrial demands.
The 1340 SCFM refrigerated air dryer (water cooled) is well suited for large-scale compressed air systems in the Middle East, especially in industrial environments affected by high ambient temperatures, dust exposure, and heavy-duty operating cycles. With its water-cooled design, high flow capacity, and stable dew point performance, it is ideal for facilities that already have reliable cooling water infrastructure and require dependable moisture removal for continuous plant operation.
For Middle East installations, this model is best suited to indoor, clean, and ventilated industrial environments with dependable cooling water supply. Because the region commonly experiences heat extremes, sand and dust exposure, and in some locations higher coastal humidity, proper upstream filtration and good maintenance of the cooling water circuit are strongly recommended. In practice, this model is most suitable for large industrial plants, utility facilities, and process sites that already operate centralized cooling water systems.
