Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
High corrosion resistance
High recycling rate
Easy to clean and maintain
Stable performance
Easy to maintain
Highly efficient pneumatic controller
Intelligent and user-friendly design

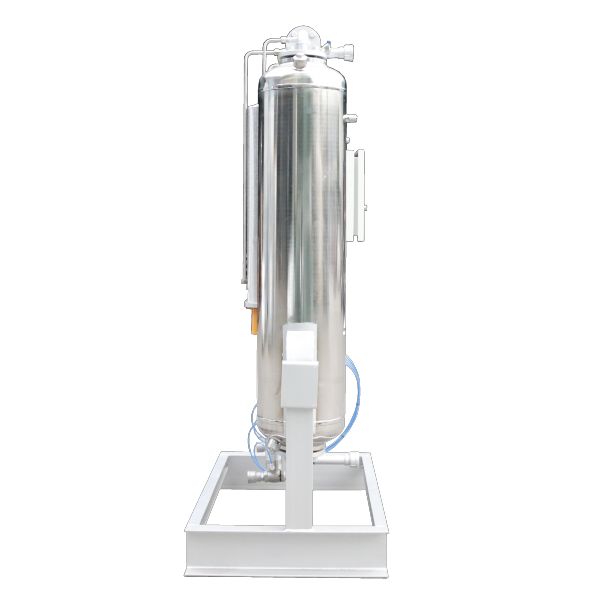

The stainless steel compressed air adsorption dryer is designed to provide clean, dry, and stable compressed air for industries with strict hygiene, corrosion resistance, and air quality requirements. It is especially suitable for applications where standard carbon steel equipment may not meet environmental or cleanliness standards.

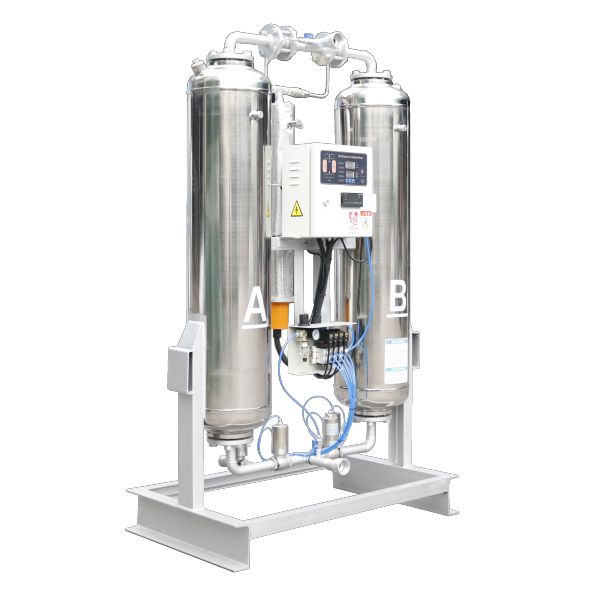

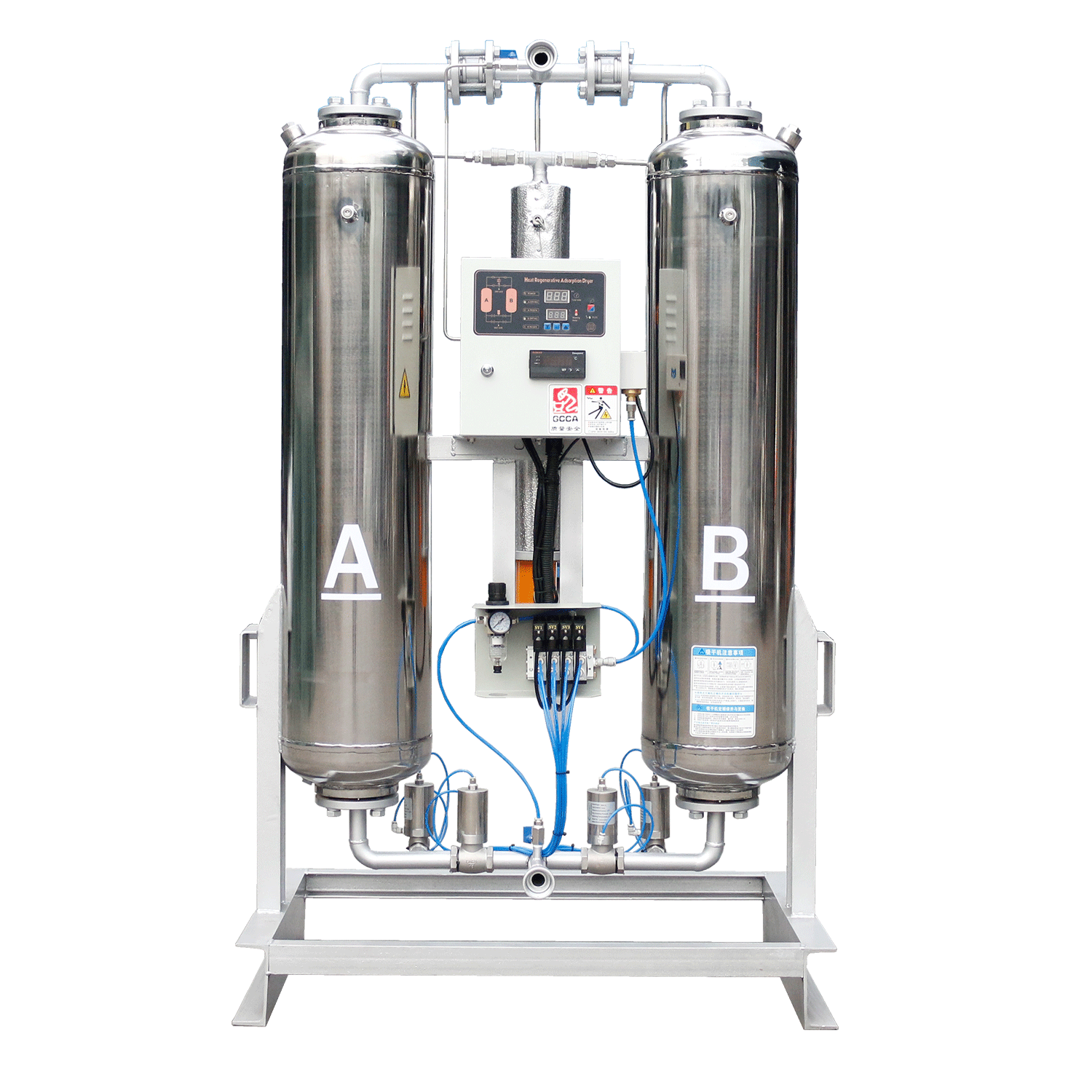

This dryer operates through an adsorption and regeneration process. Moisture in the compressed air is absorbed by a high-performance desiccant inside the drying towers. While one tower is used for drying, the other tower is regenerated to restore its adsorption capacity. Through alternating tower operation, the system can continuously deliver dry compressed air with a stable outlet dew point.
By combining PSA (Pressure Swing Adsorption) and TSA (Temperature Swing Adsorption) principles, the dryer achieves reliable moisture removal, low regeneration gas consumption, and efficient long-term operation. Its stainless steel construction also offers excellent corrosion resistance, high-temperature resistance, and easy cleaning performance, making it ideal for demanding industrial environments.
To ensure reliable operation and consistent drying performance, the stainless steel adsorption dryer should be used under the following recommended conditions:
For best performance, the dryer should be installed with proper pre-filtration to protect the desiccant and maintain stable air quality. Clean inlet air and controlled operating conditions help extend service life and improve drying efficiency.
| Parameter | Specification |
|---|---|
| Applicable Fluids | Compressed air, nitrogen |
| Inlet Air Flow | Std. 13.5 Nm³/min | 810 Nm³/h |
| Working Principle | PSA + TSA adsorption drying |
| Working Cycle | 50–240 min (adjustable) |
| Average Regeneration Gas Consumption | Std. 6% | Min. 3.5% | Max. 8% |
| Inlet Air Pressure | Std. 7 bar | Min. 6 bar | Max. 10 bar |
| Pressure Loss at Full Load | 0.2 bar |
| Inlet Air Oil Content | Oil-free compressed air or ≤0.1 ppm (mg/m³) |
| Inlet Air Temperature | 10–30℃ | Min. 2℃ | Max. 40℃ |
| Inlet Air Dew Point | ≤15℃ |
| Outlet Gas Dew Point | -20℃ to -50℃ under standard conditions |
| Working Environment Temperature | Min. 2℃ | Max. 45℃ |
The stainless steel compressed air adsorption dryer is well suited for Middle East industrial environments that require clean, dry, and corrosion-resistant compressed air systems. In regional conditions that may include high temperatures, airborne dust, and in some coastal areas higher humidity and corrosive operating environments, stainless steel construction offers clear advantages for applications that demand better hygiene, easier cleaning, and stronger resistance to corrosion. It is especially suitable for industries such as food processing, healthcare-related manufacturing, water treatment, petrochemical utilities, and clean technical environments.
For Middle East projects, this model is best positioned where the site requires a combination of low dew point performance, corrosion resistance, hygienic construction, and easy cleaning. It is especially suitable for coastal facilities, water-related industries, food and pharmaceutical plants, and clean utility air systems. Proper pre-filtration and stable oil-free inlet air remain important to protect the desiccant and maintain long-term air quality performance.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Quiet operation with low noise;
Utilizes high-performance pneumatic valves;
Equipped with a fully electronic programmable controller;
Automatic pressure loading function ensures the longevity of the desiccant;
Heater includes pressure protection to prevent dry burning, extending the heater’s service life;
Uses high-performance desiccant with strong adsorption and wear resistance, ensuring stable dew point and preventing powdering during long-term operation.
Ensure safe use in flammable and explosive environments
Resists chemical corrosion and extends service life
Special sealing technology prevents flammable gases or dust from entering the interior of the machine
Regeneration gas consumption can be adjusted, with energy saving and dew point adjustment function
High-efficiency adsorbents are used, with strong adsorption capacity and wear resistance, ensuring stable dew point and no powdering during long-term use;
The heater is equipped with pressure protection to prevent the heater from dry burning, which increases the service life of the heater.
Low operating noise;
High-performance pneumatic valves are used;
Fully electronic programmable controller is used;
Automatic pressure charging function ensures the service life of the adsorbent;
