Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
High-efficiency adsorbents are used, with strong adsorption capacity and wear resistance, ensuring stable dew point and no powdering during long-term use;
The heater is equipped with pressure protection to prevent the heater from dry burning, which increases the service life of the heater.
Low operating noise;
High-performance pneumatic valves are used;
Fully electronic programmable controller is used;
Automatic pressure charging function ensures the service life of the adsorbent;

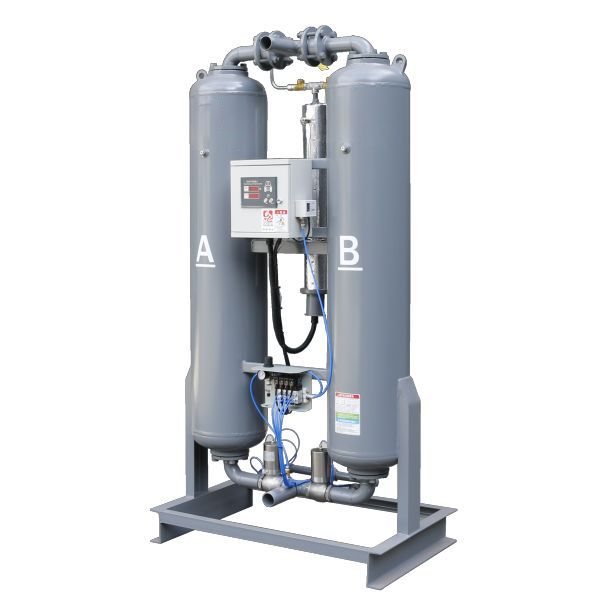

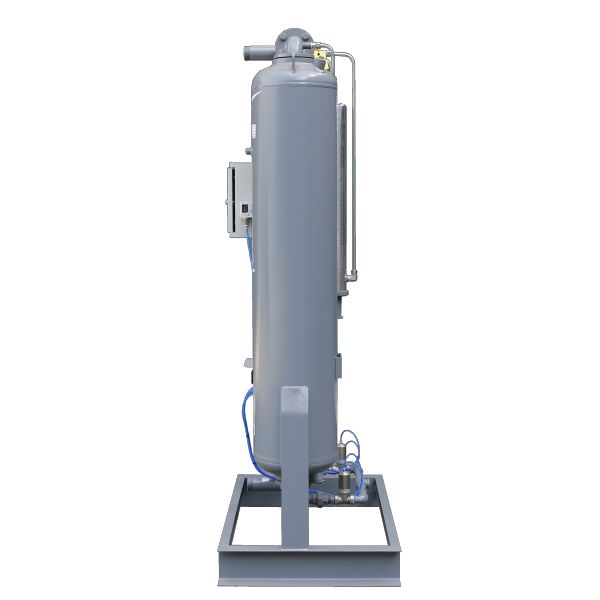

The CH Series Heated Regeneration Adsorption Air Dryer is designed to remove moisture from compressed air systems efficiently and continuously. It uses a dual-tower adsorption process in which one tower dries the compressed air while the other tower undergoes regeneration.
During operation, moisture in the compressed air is absorbed by activated alumina desiccant inside the adsorption tower. At the same time, the saturated desiccant in the other tower is regenerated by heated air, which reduces the amount of regeneration gas required compared with heatless dryers. This heated regeneration method helps lower operating costs while maintaining a stable and low pressure dew point.
By alternating between adsorption and regeneration, the CH Series ensures a continuous supply of clean, dry compressed air for industrial applications that require reliable moisture control and stable system performance.
To ensure stable operation and optimal drying performance, the CH Series Heated Regeneration Adsorption Air Dryer should be used under the following recommended conditions:
For the best drying effect and longer desiccant service life, the dryer should be installed with appropriate pre-filtration and operated under stable inlet conditions. Customized pressure levels and special configurations are also available for specific project requirements.
| Processing Capacity (m³/min) | Voltage (V/Hz) | Total Power (kW) | Inlet/Outlet | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| 1.5 | 380/50 | 0.9 | G1″ | 95 | 670×580×1695 |
| 2.5 | 380/50 | 1.7 | G1″ | 125 | 730×630×1805 |
| 3.8 | 380/50 | 1.7 | G1 1/2″ | 180 | 840×570×1690 |
| 6.5 | 380/50 | 2.5 | G1 1/2″ | 315 | 1020×610×1710 |
| 10.5 | 380/50 | 3.7 | G2″ | 448 | 1160×680×1900 |
| 13.5 | 380/50 | 3.7 | G2″ | 540 | 1160×680×2200 |
| 17.0 | 380/50 | 3.7 | DN65 | 610 | 1195×720×2175 |
| 21.5 | 380/50 | 6.1 | DN80 | 740 | 1280×980×2310 |
| 25.0 | 380/50 | 10.0 | DN80 | 850 | 1350×930×2450 |
| 28.5 | 380/50 | 10.0 | DN80 | 1040 | 1460×1060×2320 |
| 32.0 | 380/50 | 10.0 | DN80 | 1150 | 1460×1060×2510 |
| 37.0 | 380/50 | 10.0 | DN100 | 1280 | 1580×1080×2460 |
| 41.5 | 380/50 | 13.1 | DN100 | 1390 | 1700×1060×2730 |
| 45.0 | 380/50 | 13.1 | DN100 | 1460 | 1765×1160×2550 |
| 50.0 | 380/50 | 13.1 | DN100 | 1590 | 1765×1160×2750 |
| 55.0 | 380/50 | 13.1 | DN100 | 1700 | 1825×1150×2690 |
| 60.0 | 380/50 | 20.1 | DN100 | 1830 | 1825×1150×2790 |
| 65.0 | 380/50 | 20.1 | DN125 | 2050 | 2040×1240×2820 |
| 70.0 | 380/50 | 20.1 | DN125 | 2270 | 2040×1240×2920 |
| 75.0 | 380/50 | 20.1 | DN125 | 2380 | 2136×1240×2930 |
| 85.0 | 380/50 | 27.1 | DN125 | 2650 | 2210×1350×2970 |
| 95.0 | 380/50 | 27.1 | DN150 | 2950 | 2330×1430×3250 |
| 110.0 | 380/50 | 34.1 | DN150 | 3200 | 2450×1430×2980 |
| 130.0 | 380/50 | 42.1 | DN150 | 4700 | 2610×1580×3060 |
| 150.0 | 380/50 | 50.1 | DN200 | 5300 | 2900×1400×3211 |
Note: Customized models are available for air volume above 150 m³/min or for special requirements related to materials, specifications, or inlet temperature. All data is subject to change without prior notice.
The CH Series Heated Regeneration Adsorption Air Dryer is well suited for Middle East industrial environments that require stable low dew point compressed air, reduced regeneration air consumption, and reliable continuous-duty operation. Compared with heatless regeneration systems, the heated regeneration design helps reduce purge air loss while maintaining dependable drying performance, making it especially suitable for medium- to large-scale industrial compressed air systems operating in hot, dust-prone, and utility-intensive environments.
For Middle East installations, this heated regeneration dryer should be used with proper aftercooling, water separation, and pre-filtration, especially in hot-weather operation where compressor discharge temperatures may rise. Because regional conditions often include heat extremes and dust exposure, the dryer is best positioned as a low dew point solution for centralized industrial air systems, utility air, and process-support air, rather than as a general-purpose commercial dryer.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
