Supports customization with processing capacities of up to 17,660 CFM (~500 m³/min).
Quiet operation with low noise;
Utilizes high-performance pneumatic valves;
Equipped with a fully electronic programmable controller;
Automatic pressure loading function ensures the longevity of the desiccant;
Heater includes pressure protection to prevent dry burning, extending the heater’s service life;
Uses high-performance desiccant with strong adsorption and wear resistance, ensuring stable dew point and preventing powdering during long-term operation.

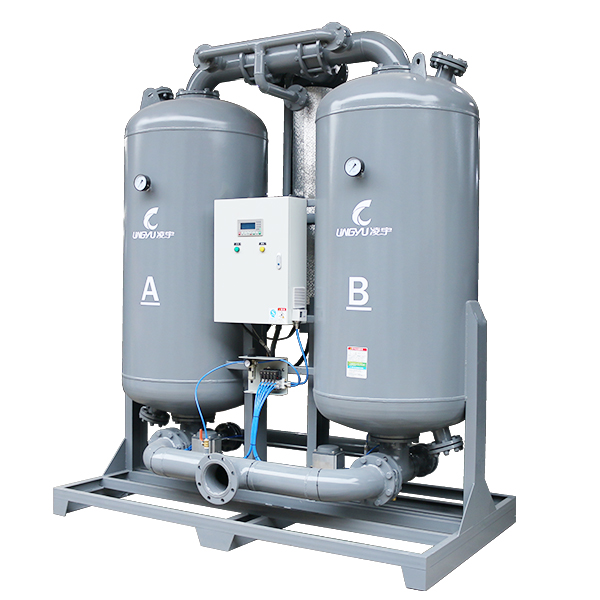

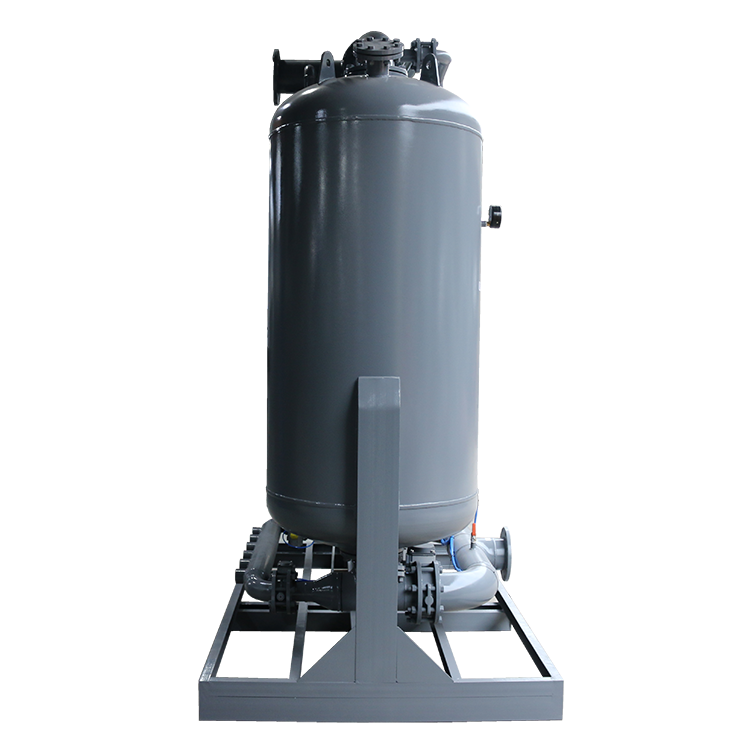

The micro-heat regenerated adsorption dryer operates on the principle of temperature swing adsorption (TSA). In this process, the adsorbent absorbs moisture at normal temperature, and when heated, the absorbed moisture is released back into the gas phase. The process provides the necessary heat for desorption from an external heat source while using part of its own dried gas as a heat carrier. During thermal regeneration, the complete release of moisture into the gas phase does not mean the adsorbent is fully regenerated. The original adsorption activity is only restored when the temperature returns close to its initial value. Therefore, regeneration in a micro-heat adsorption dryer must follow a two-step process: first “heating and desorption,” followed by “cooling and adsorption”; desorption is only one step in the overall adsorbent regeneration process.
Applicable media: Compressed air, non-corrosive gases
Rated inlet pressure: 0.7 MPa (allowable range: 0.6 MPa–1.0 MPa; other pressures customizable)
Rated inlet temperature: 10℃–30℃ (maximum temperature: ≤40℃)
Average regeneration gas consumption: 4%–8%
Outlet dew point: ≤-40℃
Adsorbent: Activated alumina + high-performance molecular sieves
Rated ambient temperature: 35℃ (operable range: 2℃–45℃)
| Processing Capacity (m³/min) | Power Supply V/Hz | Total Power kW | Inlet/Outlet Connection | Equipment Weight kg | Dimensions (L×W×H mm) |
|---|---|---|---|---|---|
| 1.5 | 380/50 | 1.7 | G1″ | 125 | 725×630×1795 |
| 2.5 | 380/50 | 1.7 | G1″ | 180 | 840×570×1695 |
| 3.8 | 380/50 | 2.5 | G1¾” | 310 | 1020×610×1690 |
| 6.5 | 380/50 | 3.7 | G1½” | 436 | 1160×680×1860 |
| 10.5 | 380/50 | 3.7 | G2″ | 610 | 1200×720×2180 |
| 13.5 | 380/50 | 6.1 | G2″ | 720 | 1260×780×2230 |
| 17.0 | 380/50 | 10.0 | DN65 | 850 | 1350×930×2440 |
| 21.5 | 380/50 | 10.0 | DN80 | 1000 | 1470×1000×2270 |
| 25.0 | 380/50 | 10.0 | DN80 | 1100 | 1460×1000×2470 |
| 28.5 | 380/50 | 10.0 | DN80 | 1280 | 1560×1070×2450 |
| 32.0 | 380/50 | 13.1 | DN80 | 1350 | 1600×1050×2650 |
| 37.0 | 380/50 | 13.1 | DN100 | 1550 | 1700×1100×2680 |
| 41.5 | 380/50 | 13.1 | DN100 | 1700 | 1830×1150×2700 |
| 45.0 | 380/50 | 20.1 | DN100 | 1830 | 1830×1150×2790 |
| 50.0 | 380/50 | 20.1 | DN100 | 2000 | 2040×1240×2780 |
| 55.0 | 380/50 | 20.1 | DN100 | 2170 | 2040×1240×2875 |
| 60.0 | 380/50 | 27.1 | DN100 | 2460 | 2130×1300×2790 |
| 65.0 | 380/50 | 27.1 | DN125 | 2650 | 2210×1340×2970 |
| 75.0 | 380/50 | 27.1 | DN125 | 3100 | 2350×1380×2920 |
| 85.0 | 380/50 | 34.1 | DN125 | 3200 | 2350×1380×2920 |
| 95.0 | 380/50 | 34.1 | DN150 | 4000 | 2446×1430×3170 |
| 110.0 | 380/50 | 42.1 | DN150 | 4700 | 2610×1580×3060 |
| 130.0 | 380/50 | 50.1 | DN150 | 5140 | 2900×1400×3079 |
| 150.0 | 380/50 | 55.1 | DN200 | 6100 | 3100×1580×3274 |
Note: If the air flow exceeds 150 m³/min or if special specifications, materials, or temperature requirements are needed, please contact our company or agents for technical consultation. The above data is for reference only and may change without notice. For other specifications, please contact us directly.
In Middle Eastern industrial environments, compressed air drying systems often face high ambient temperatures, airborne dust, coastal humidity, and continuous-duty operating conditions. For applications that require a stable pressure dew point of ≤ -40°C, the Micro-Heat Regenerated Adsorption Dryer is better suited for critical industrial air systems rather than light-duty general-purpose use.
Recommended applications include:
Application note:
For Middle East projects with high summer temperatures, coastal humidity, or dusty outdoor conditions, upstream cooling, water separation, and high-efficiency filtration are recommended to maintain stable dryer performance and protect the adsorbent bed over long-term operation.
