Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

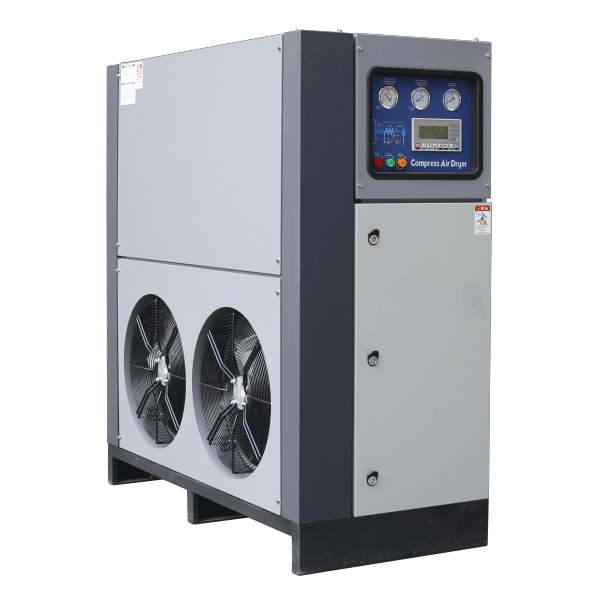

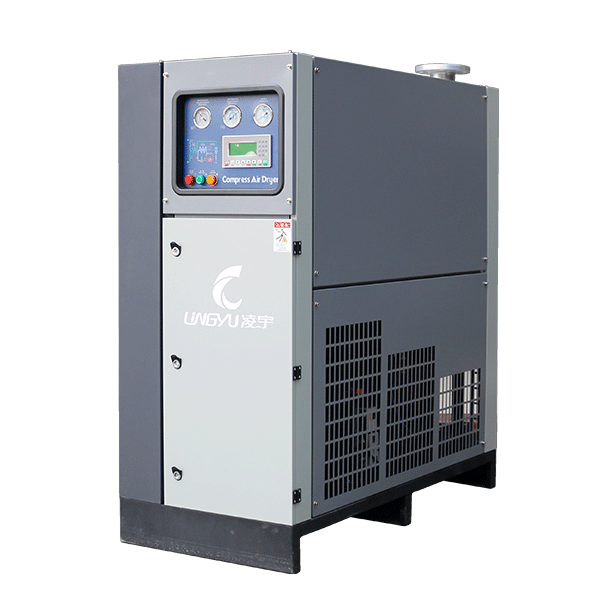

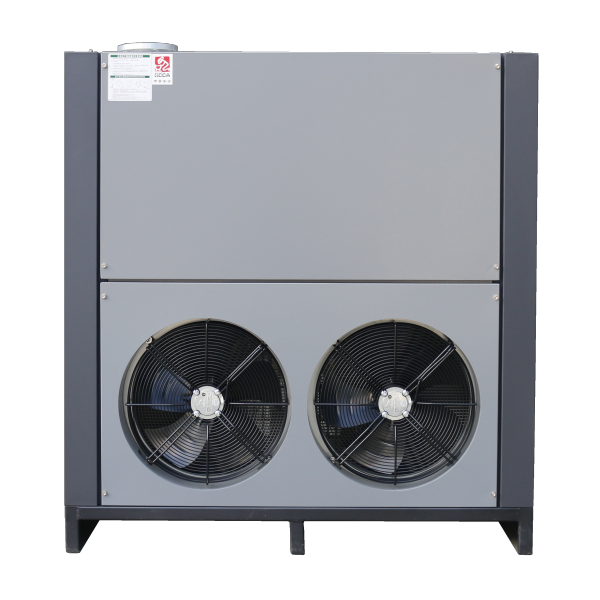

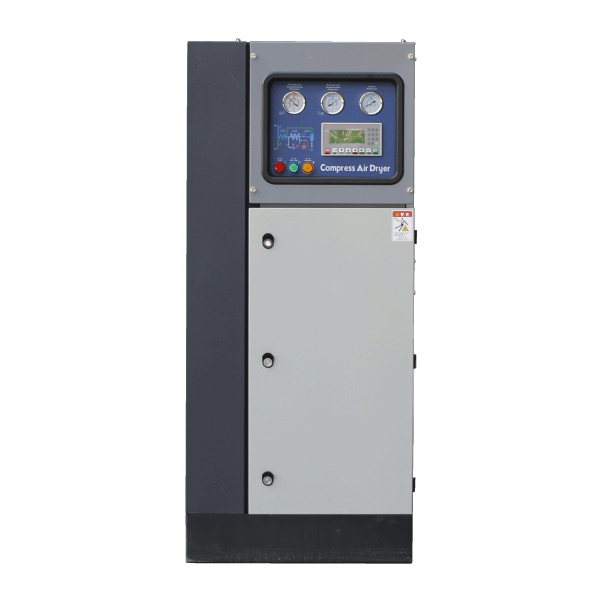

The Refrigerated Air Dryer is designed to provide stable and efficient moisture removal for industrial compressed air systems. It works by cooling hot, moisture-laden compressed air to condense water vapor into liquid, which is then separated and discharged from the system. This process helps deliver clean and dry compressed air to downstream equipment and production lines.
The dryer maintains an outlet pressure dew point of 2°C to 10°C, which is suitable for a wide range of industrial applications. With optional air-cooled or water-cooled configurations, the system can be adapted to different installation conditions and operating environments. Its efficient refrigeration design helps reduce moisture-related damage, improve air quality, and support stable long-term operation.
To ensure stable performance and reliable operation, the refrigerated air dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean, well-ventilated environment and matched to the actual system pressure, airflow, and temperature conditions.
| Processing Capacity (m³/min) | Power Supply (V/Hz) | Total Power (kW) | Air Inlet/Outlet | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 1.50 | 220/50 | 0.70 | RC1″ | 500 × 380 × 740 |
| 2.50 | 220/50 | 0.79 | RC1″ | 500 × 380 × 740 |
| 3.80 | 220/50 | 0.90 | RC1″ | 520 × 450 × 990 |
| 6.50 | 220/50 | 1.20 | RC1″-z | 520 × 450 × 990 |
| 10.5 | 220/50 | 2.00 | RC2″ | 670 × 560 × 1330 |
| 13.5 | 220/50 | 2.30 | RC2″ | 670 × 560 × 1330 |
| 17.0 | 220/50 | 2.80 | RC1″-1z” | 1200 × 700 × 1480 |
| 21.5 | 380/50 | 3.90 | DN80 | 1460 × 700 × 1480 |
| 25.0 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1480 |
| 28.5 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1600 |
| 32.0 | 380/50 | 5.70 | DN80 | 1480 × 740 × 1600 |
| 37.0 | 380/50 | 7.80 | DN100 | 1640 × 840 × 1750 |
| 45.0 | 380/50 | 8.80 | DN100 | 1640 × 840 × 1750 |
| 55.0 | 380/50 | 10.1 | DN125 | 1740 × 840 × 1750 |
| 65.0 | 380/50 | 10.1 | DN125 | 1890 × 840 × 1803 |
| 75.0 | 380/50 | 11.1 | DN125 | 1980 × 950 × 1990 |
| 85.0 | 380/50 | 13.7 | DN125 | 2220 × 950 × 2063 |
Note: For processing capacities above 85 m³/min, or for special requirements related to specifications, materials, or operating temperature, please contact our company or authorized distributors. All specifications are subject to change without prior notice.
The Refrigerated Air Dryer is well suited for industrial compressed air systems in the Middle East that require stable moisture removal, reliable dew point control, and long-term utility air performance. With an outlet pressure dew point of 2°C to 10°C and optional air-cooled or water-cooled configurations, it is especially suitable for general plant air systems in regional operating conditions that may include high ambient temperatures, dust exposure, and heavy-duty daily operation. It is best positioned for utility air and production-support air, rather than for ultra-low-dew-point or specialty gas applications.
For Middle East projects, air-cooled versions are more suitable where good indoor ventilation can be maintained and cooling water is not readily available, while water-cooled versions are more appropriate for larger industrial sites with established utility support. Because regional conditions often include high heat, dust exposure, and strong pressure on water efficiency, the dryer should be installed in a clean, well-ventilated environment and matched with proper pre-filtration and system sizing.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 3885 CFM water-cooled refrigerated air dryer is an industrial moisture-removal system designed for facilities that require stable and efficient drying performance. Suitable for large compressed air networks, it provides reliable dew point control and long-term protection for downstream equipment in demanding environments.
Engineered for continuous operation, this high-capacity unit combines advanced refrigeration components with an energy-efficient water-cooling design. Its consistent performance makes it ideal for industries such as petrochemical processing, metal fabrication, manufacturing, and pharmaceutical production—any application where clean, dry compressed air is essential.
The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
