Supports customization, with a processing capacity of up to 15,900 CFM (cubic feet per minute).

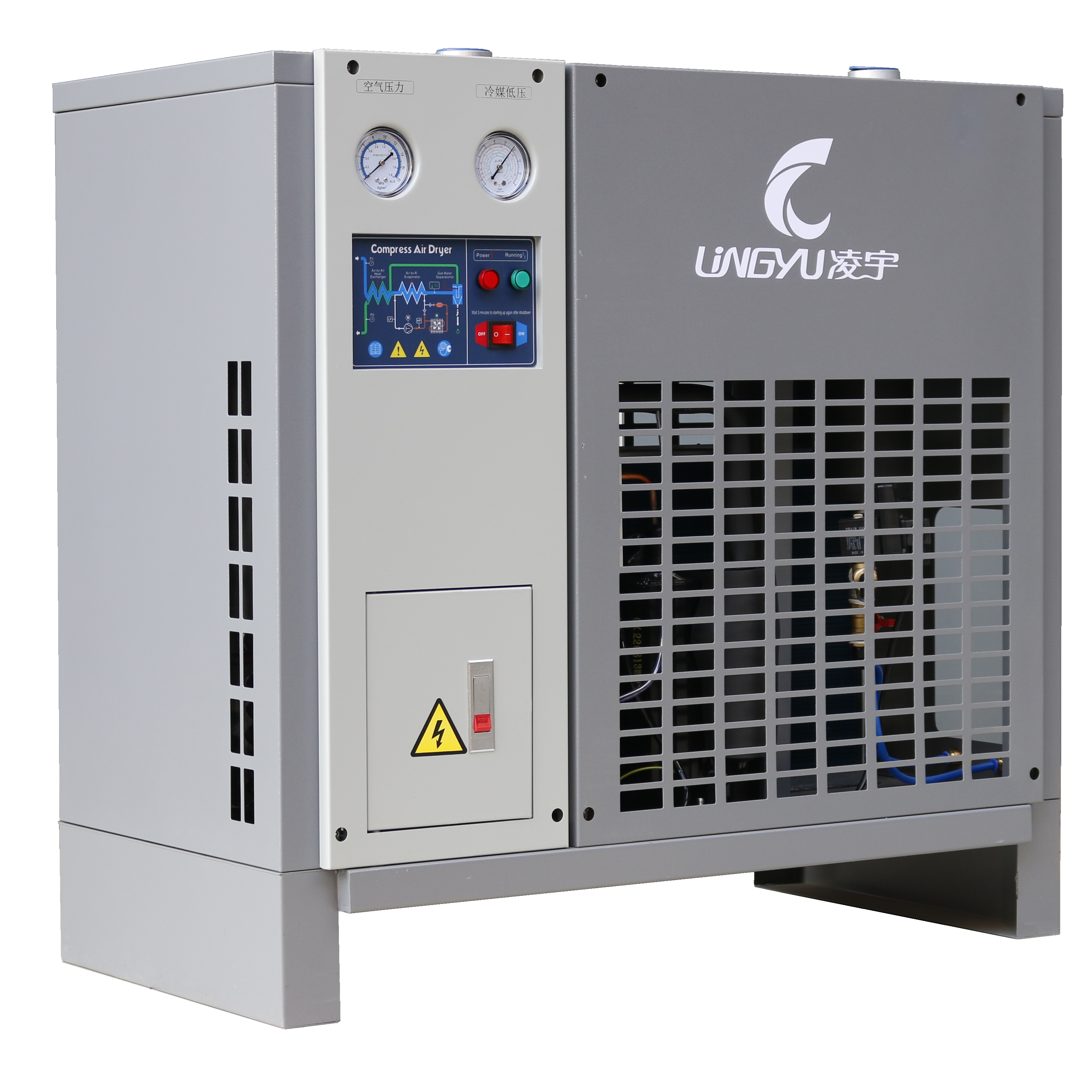

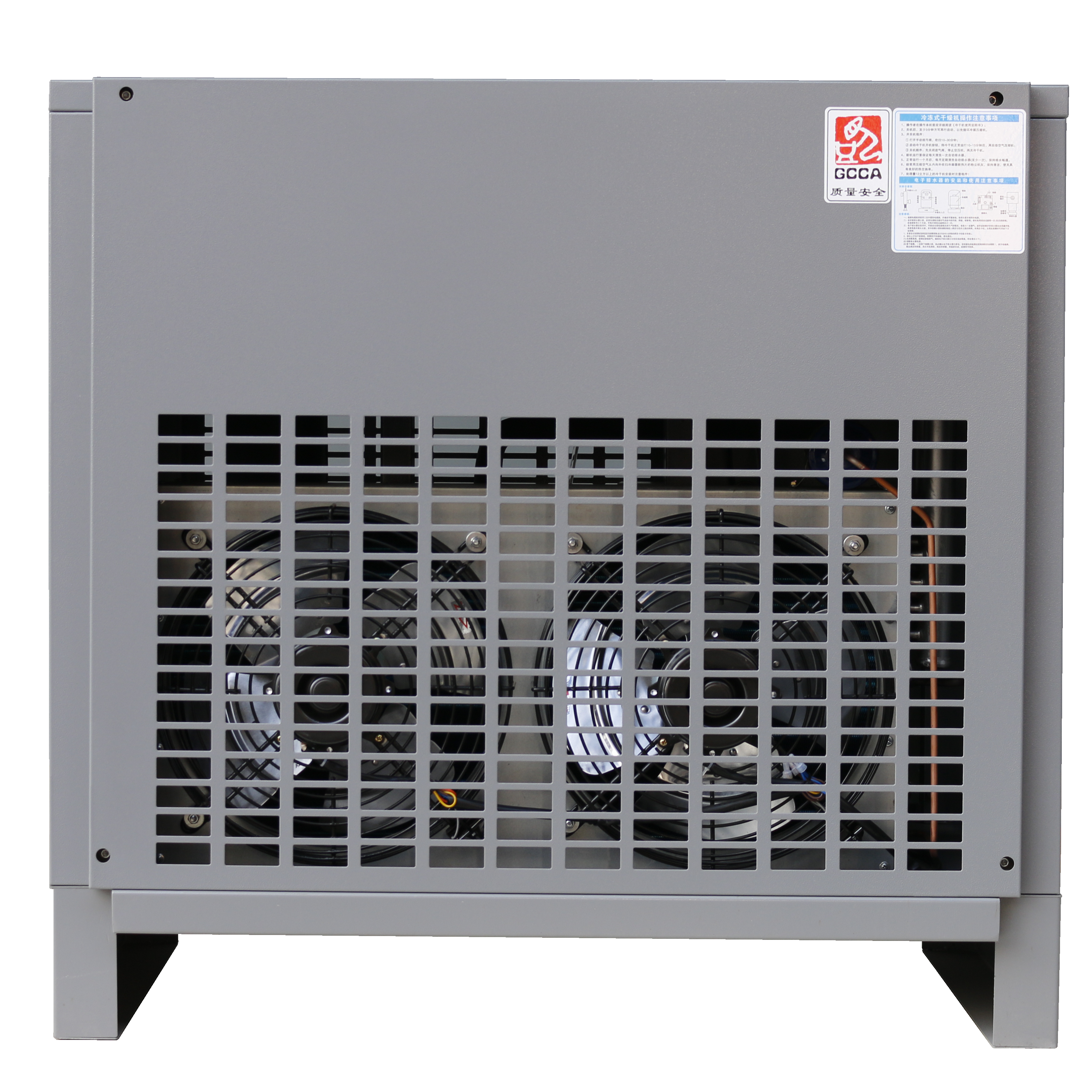

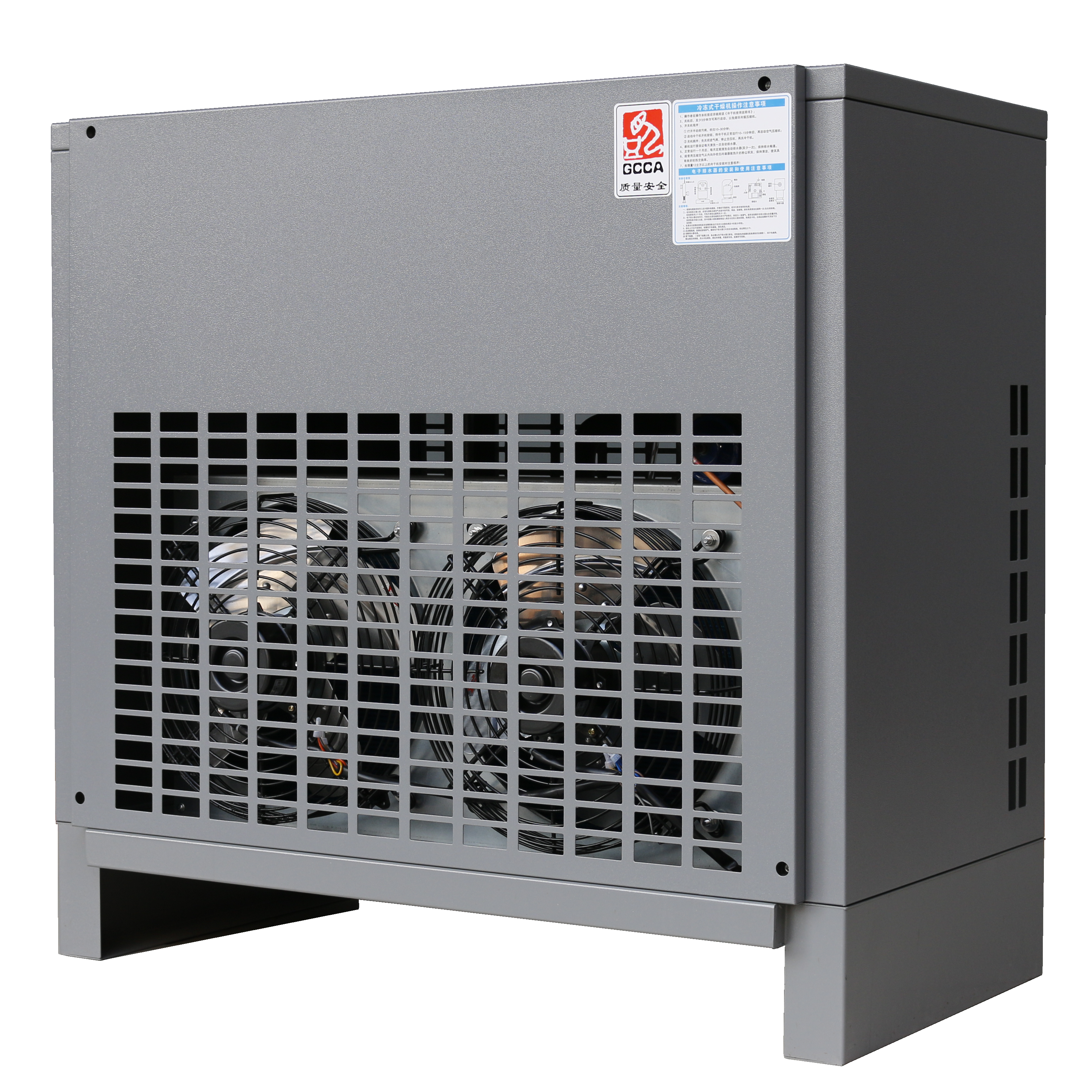

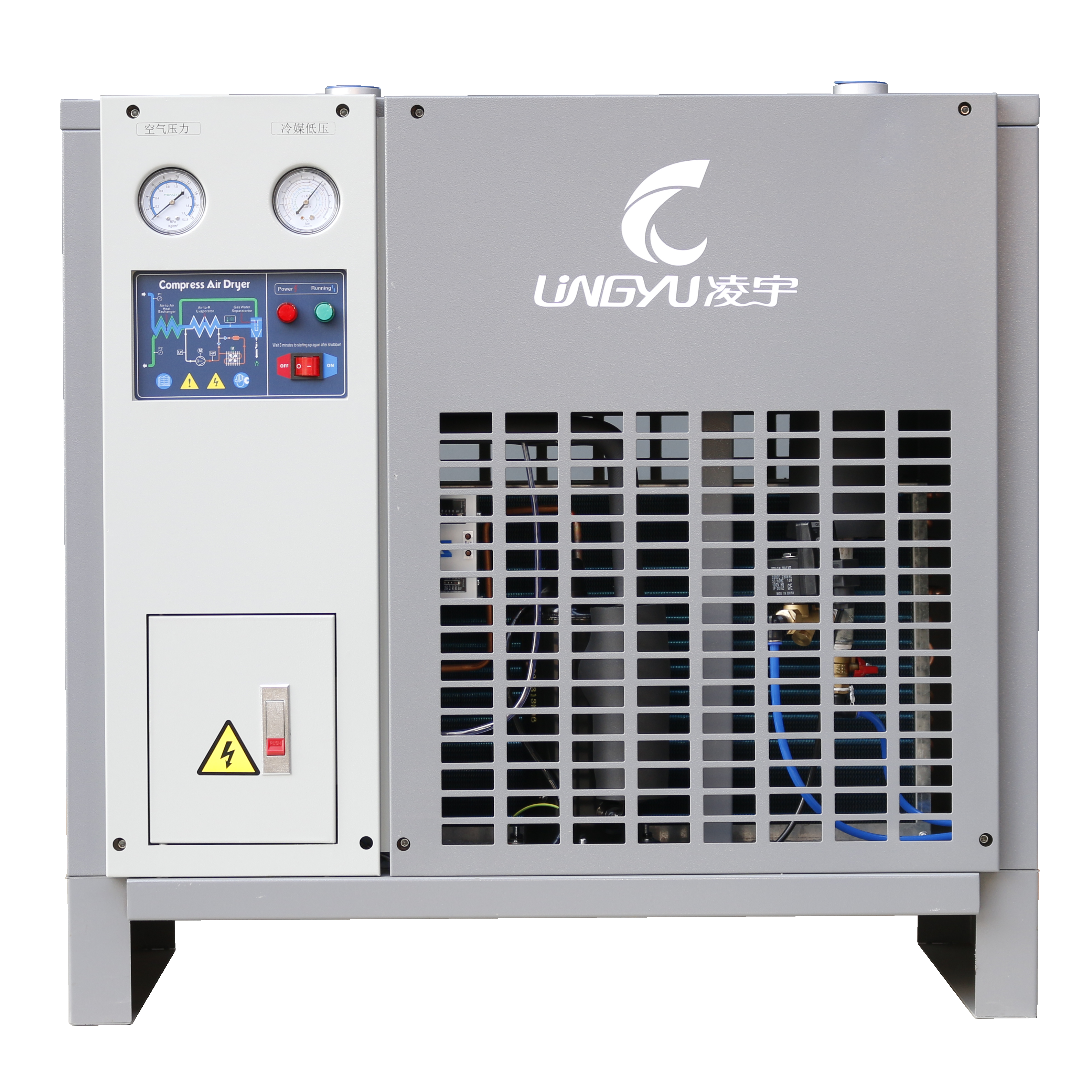

This 75 CFM (air-cooled) refrigerated air dryer is a reliable and energy-efficient solution, specifically designed to remove moisture from compressed air systems. It is ideal for small to medium industrial applications, providing clean, dry compressed air with a stable pressure dew point. With its compact design and air-cooled operation, this 75 CFM (air-cooled) refrigerated air dryer ensures long-term, stable performance while minimizing maintenance requirements.
Whether you operate a workshop, packaging line, or small production facility, the 75 CFM refrigerated air dryer (air-cooled) is the perfect choice to protect your pneumatic tools and equipment from moisture-related issues.
The 75 CFM air-cooled refrigerated air dryer is engineered for small to medium compressed air systems, providing reliable moisture removal and consistent dew point control. With a compact design, energy-efficient operation, and easy installation, it is ideal for workshops, light manufacturing, automotive shops, and other commercial applications.
Rated Air Flow
Handles compressed air flow up to 75 CFM, ensuring effective dehumidification.
Air-Cooled System
No water cooling required, simplifying installation and maintenance.
Stable Dew Point
Maintains a consistent 2–10°C (35.6–50°F) pressure dew point for dry, reliable air.
Low Energy Consumption
Optimized refrigeration components minimize power usage while maintaining performance.
Automatic Drain Valve
Continuously removes condensate to prevent water accumulation in the system.
Compact & Durable Design
Space-saving enclosure with powder-coated steel housing ensures long service life.
Easy Operation
Plug-and-play setup with simple control interface and indicator lights.
Inlet Air Pressure: 4–10 bar (58–145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5–45°C (41–113°F)
Installation Environment: Indoor, dry, well-ventilated
Power Supply: 220V / 1Ph / 50Hz (customizable)
Refrigerant Type: R134a or R410A
Filtration Requirement: Pre-filter and after-filter recommended
| Parameter | Specification |
|---|---|
| Model | 75 CFM Refrigerated Air Dryer (Air-Cooled) |
| Air Flow Capacity | 75 CFM |
| Cooling Method | Air-Cooled |
| Refrigerant | R134a / R410A |
| Max Working Pressure | 10 bar |
| Pressure Dew Point | 2–10°C |
| Power Supply | 220V / 1Ph / 50Hz |
| Connection Size | 1” NPT |
| Dimensions (L×W×H) | 700 × 450 × 750 mm |
| Weight | 55 kg |
This compact air-cooled dryer provides long-term reliable operation with robust materials and quality refrigeration components.
The 75 CFM air-cooled refrigerated air dryer is well suited for small to medium compressed air systems in the Middle East, especially in operating environments affected by high temperatures, seasonal dust, and coastal humidity. With its compact footprint, air-cooled design, and simple installation requirements, it is ideal for indoor compressed air systems that need reliable moisture removal and stable day-to-day performance.
For Middle East operating conditions, the dryer should be installed in an indoor, dry, and well-ventilated location. Because regional conditions often include heat extremes, dust exposure, and in some coastal areas higher humidity, the use of pre-filters and after-filters is strongly recommended to protect the refrigeration system and improve downstream air quality. In hotter sites, good room ventilation and proper upstream cooling will help maintain stable dryer performance.
