Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

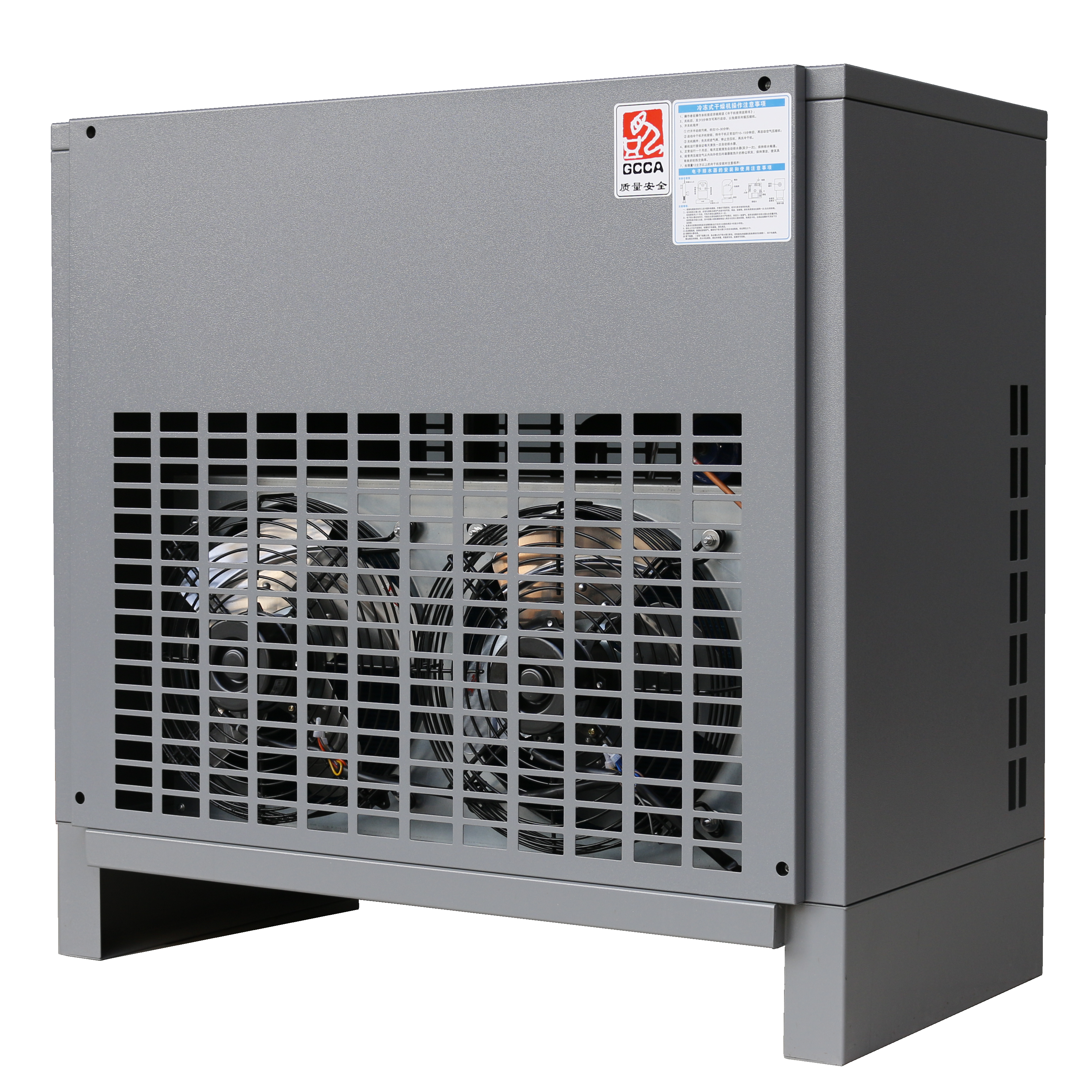

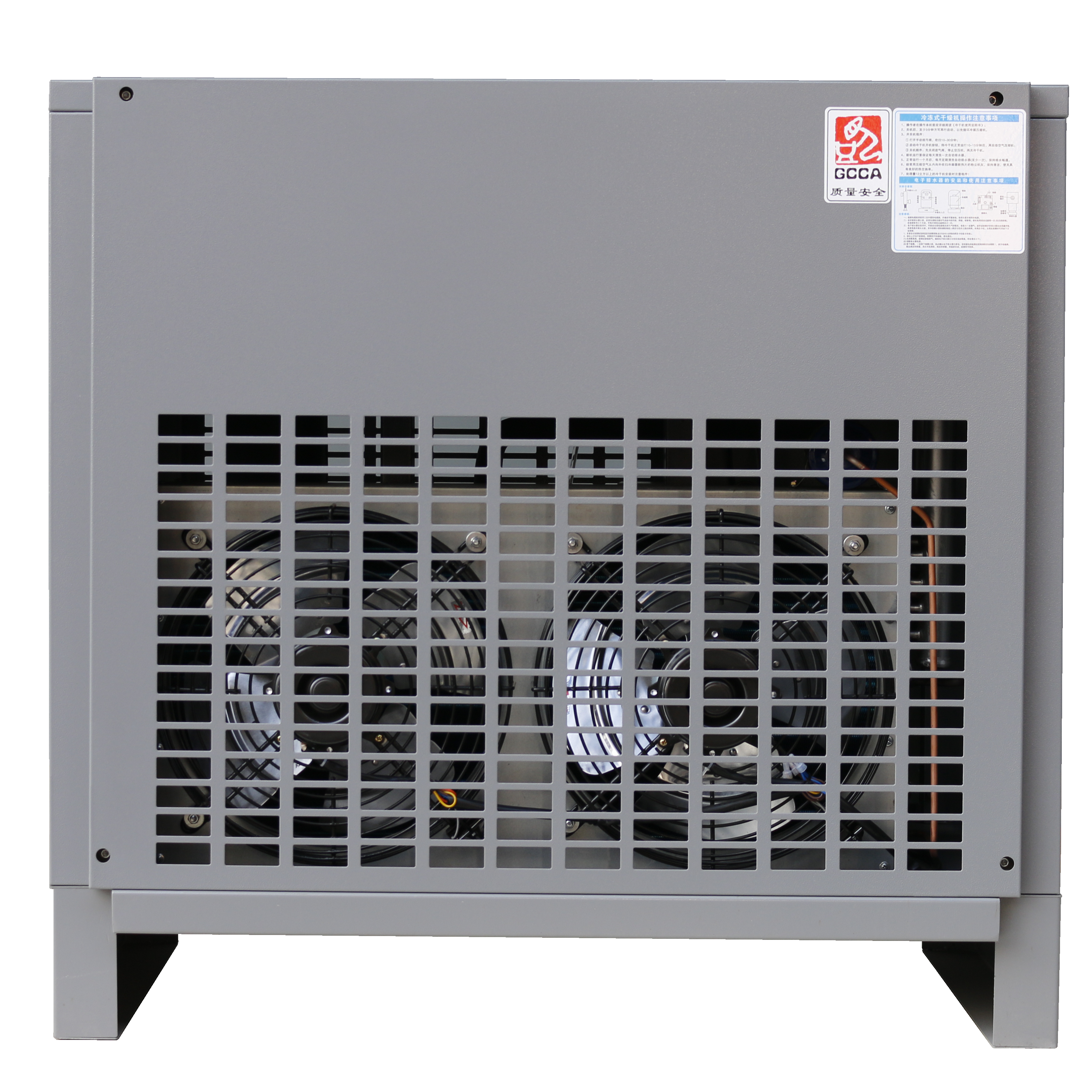

The 100 CFM refrigerated air dryer (air cooled) is a high-performance compressed air treatment solution designed to remove moisture from compressed air systems efficiently. Ideal for small to medium-sized industrial applications, this air dryer ensures clean, dry air to protect downstream equipment and improve productivity.
With advanced air-cooling technology, compact design, and energy-efficient components, the 100 CFM refrigerated air dryer (air cooled) is the perfect choice for users seeking reliability, efficiency, and long service life.
Capacity: Precisely rated for 100 CFM, ensuring optimal moisture removal for consistent compressed air quality.
Air Cooled Design: No need for water cooling infrastructure — plug and play installation.
Energy Efficient: Incorporates a high-efficiency refrigeration compressor and heat exchanger to reduce power consumption.
Compact & Durable: Space-saving footprint with a heavy-duty steel casing for long-term durability.
Low Dew Point: Delivers a stable pressure dew point as low as 2–10°C (35.6–50°F).
Automatic Drain Valve: Prevents liquid buildup and minimizes maintenance time.
Simple Controls: User-friendly interface with operating indicators and safety alarms.
Inlet Air Pressure: 4–10 bar (58–145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5–45°C (41–113°F)
Power Supply: 220V/1Ph/50Hz or customized
Installation: Indoor, well-ventilated area, free from dust and corrosive gas
Refrigerant Type: R134a (environmentally friendly and efficient)
Filtration Recommendation: Use with pre- and post-filters for enhanced performance and protection
| Model | 100 CFM Refrigerated Air Dryer (Air Cooled) |
|---|---|
| Capacity | 100 CFM (Cubic Feet per Minute) |
| Cooling Method | Air Cooled |
| Power Consumption | ≤ 0.75 kW |
| Pressure Dew Point | 2–10°C |
| Refrigerant | R134a |
| Connection Size | 1″ NPT |
| Dimensions (L×W×H) | 700 × 450 × 800 mm |
| Weight | 65 kg |
The 100 CFM refrigerated air dryer (air cooled) is well suited for small to medium compressed air systems in the Middle East, especially in operating environments affected by high temperatures, dust exposure, and in some locations seasonal humidity. With its compact footprint, air-cooled design, and single-phase power option, it is ideal for indoor facilities that need reliable moisture removal without water-cooling infrastructure. In hot and dusty regional conditions, proper ventilation and filtration are especially important for stable long-term performance.
For Middle East installations, this model should be placed in an indoor, well-ventilated area free from dust and corrosive gas. Because the region commonly experiences heat extremes and sand/dust exposure, the use of pre-filters and post-filters is strongly recommended to protect the refrigeration circuit and maintain steady dew point performance.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.

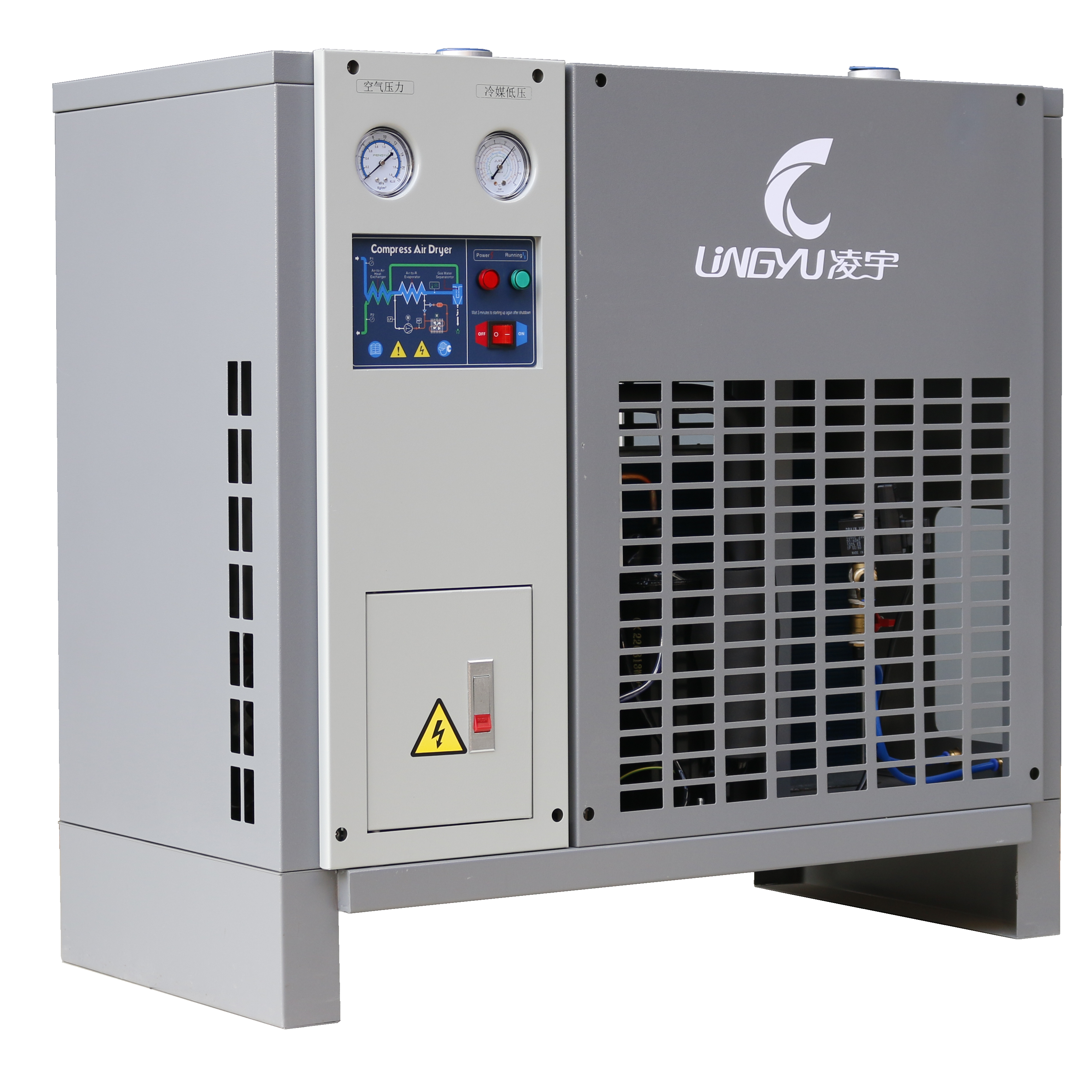

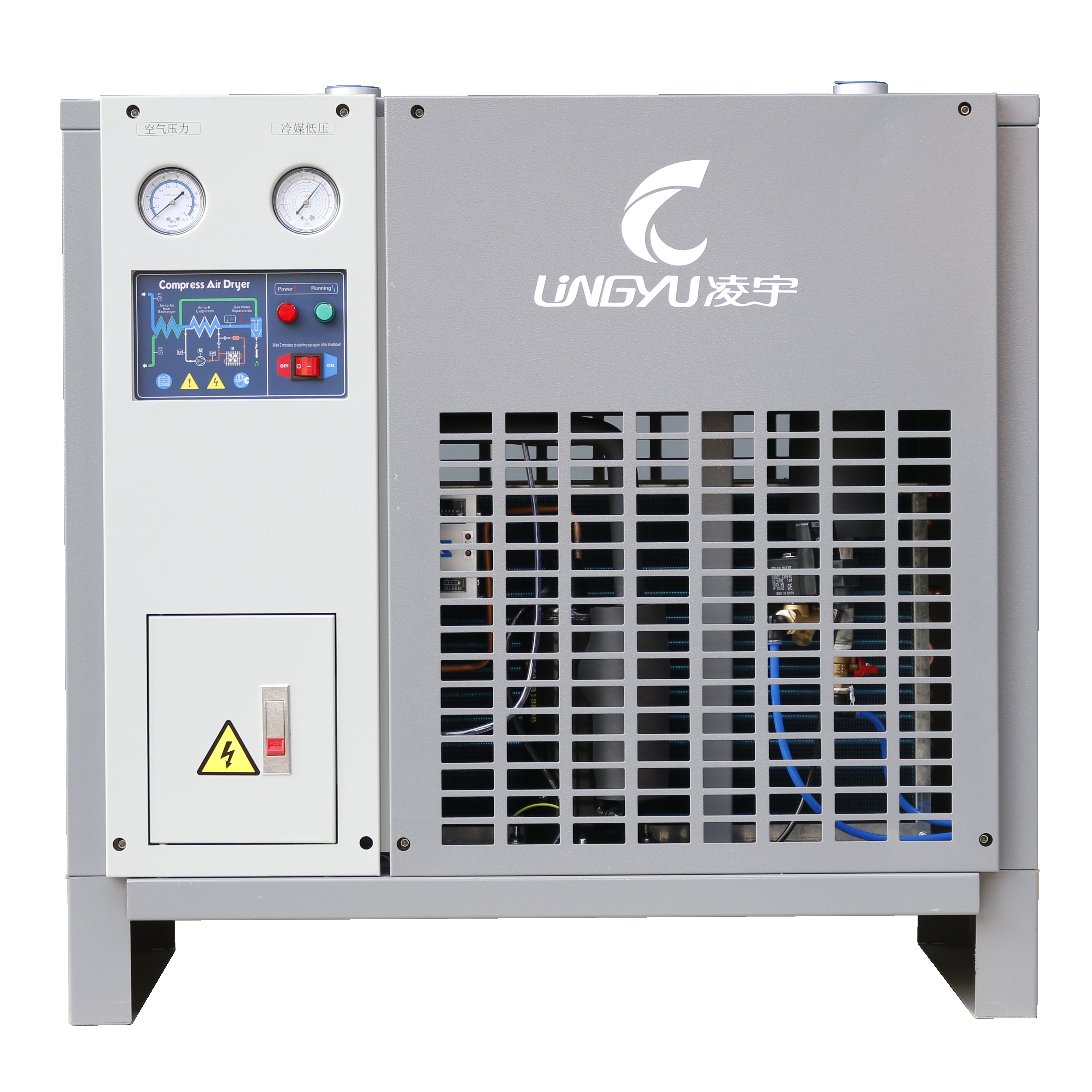

This 75 CFM (air-cooled) refrigerated air dryer is a reliable and energy-efficient solution, specifically designed to remove moisture from compressed air systems. It is ideal for small to medium industrial applications, providing clean, dry compressed air with a stable pressure dew point. With its compact design and air-cooled operation, this 75 CFM (air-cooled) refrigerated air dryer ensures long-term, stable performance while minimizing maintenance requirements.
Whether you operate a workshop, packaging line, or small production facility, the 75 CFM refrigerated air dryer (air-cooled) is the perfect choice to protect your pneumatic tools and equipment from moisture-related issues.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Good treatment effect: equipped with an independent water distribution system and it is a multiple upgraded version, the water distribution efficiency is guaranteed;
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Wide application conditions: hydrophilic aluminum foil is used, and the whole series is equipped with heat exchangers and pre-coolers as standard, which can better adapt to harsh working conditions
Customized according to needs: color can be customized, PLC is optional, dry contacts, Modbus communication, Internet of Things communication, etc. can be customized according to customer needs
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
