Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

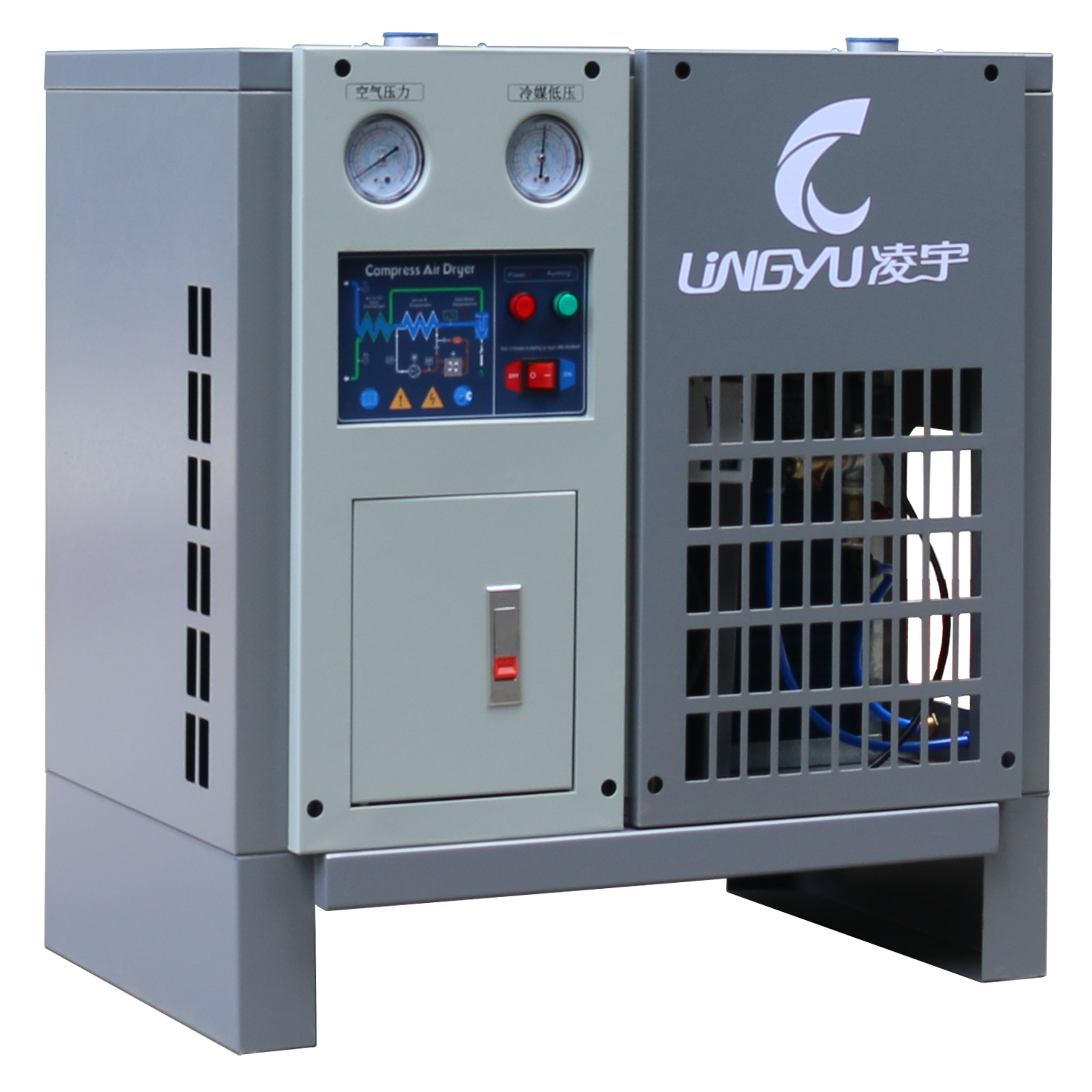

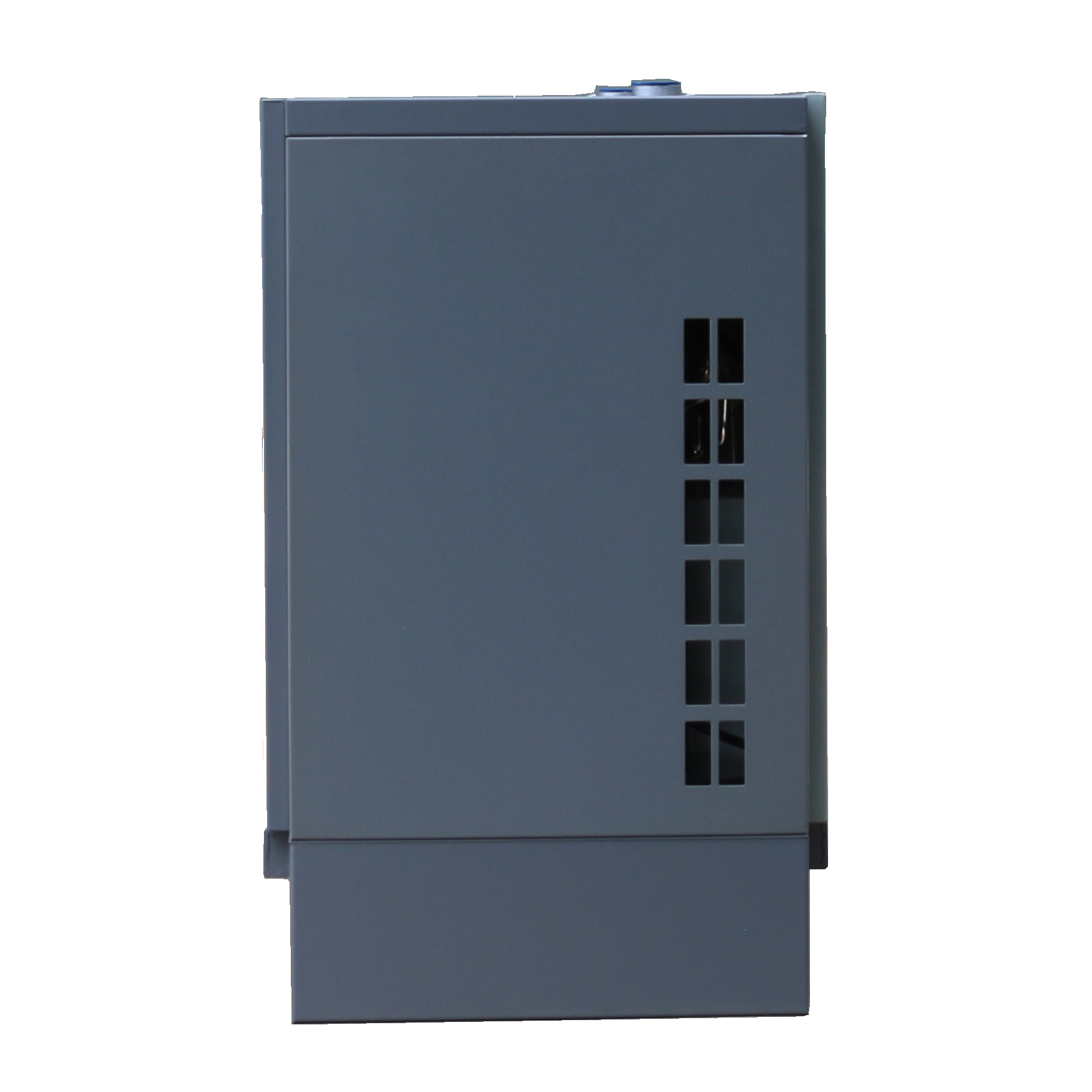

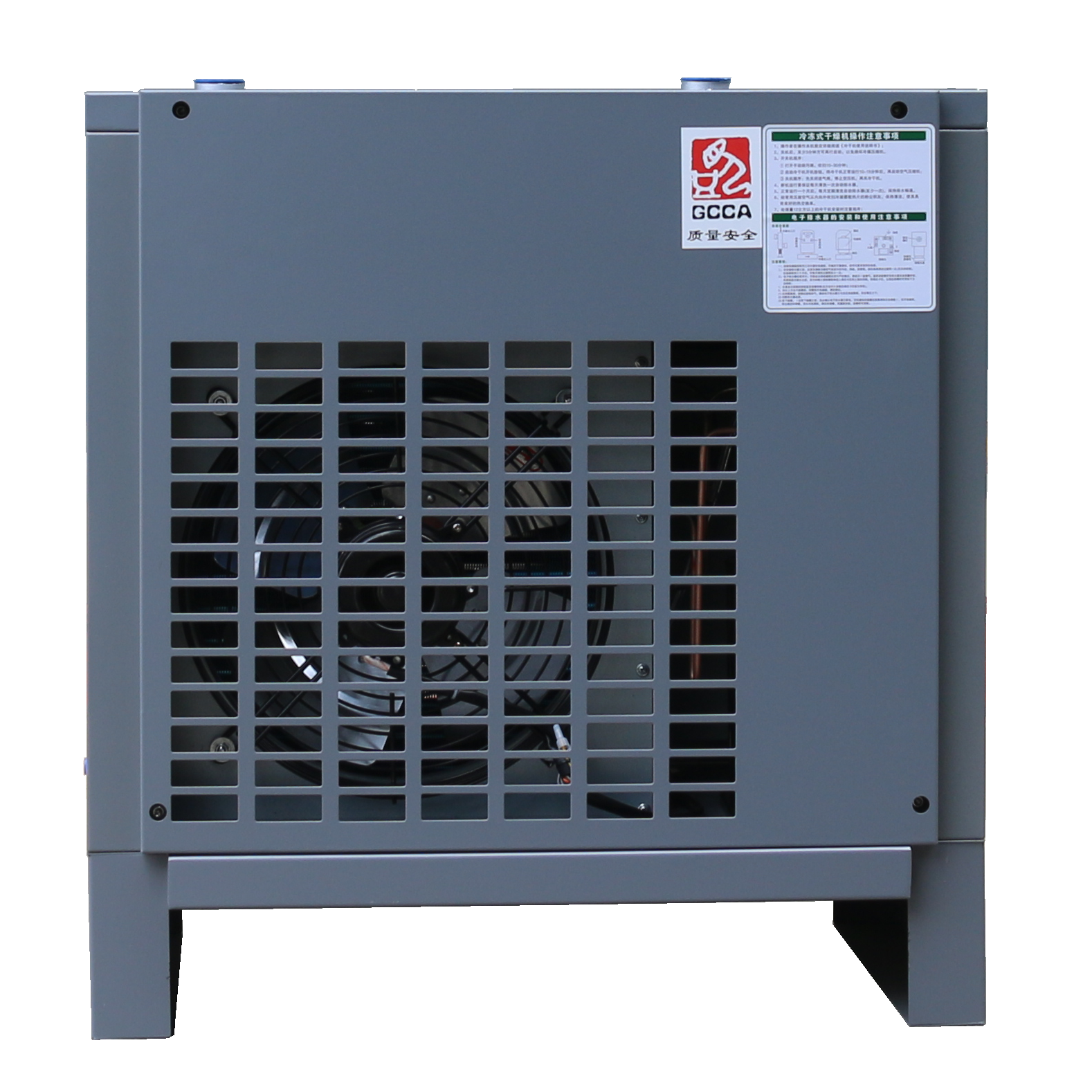

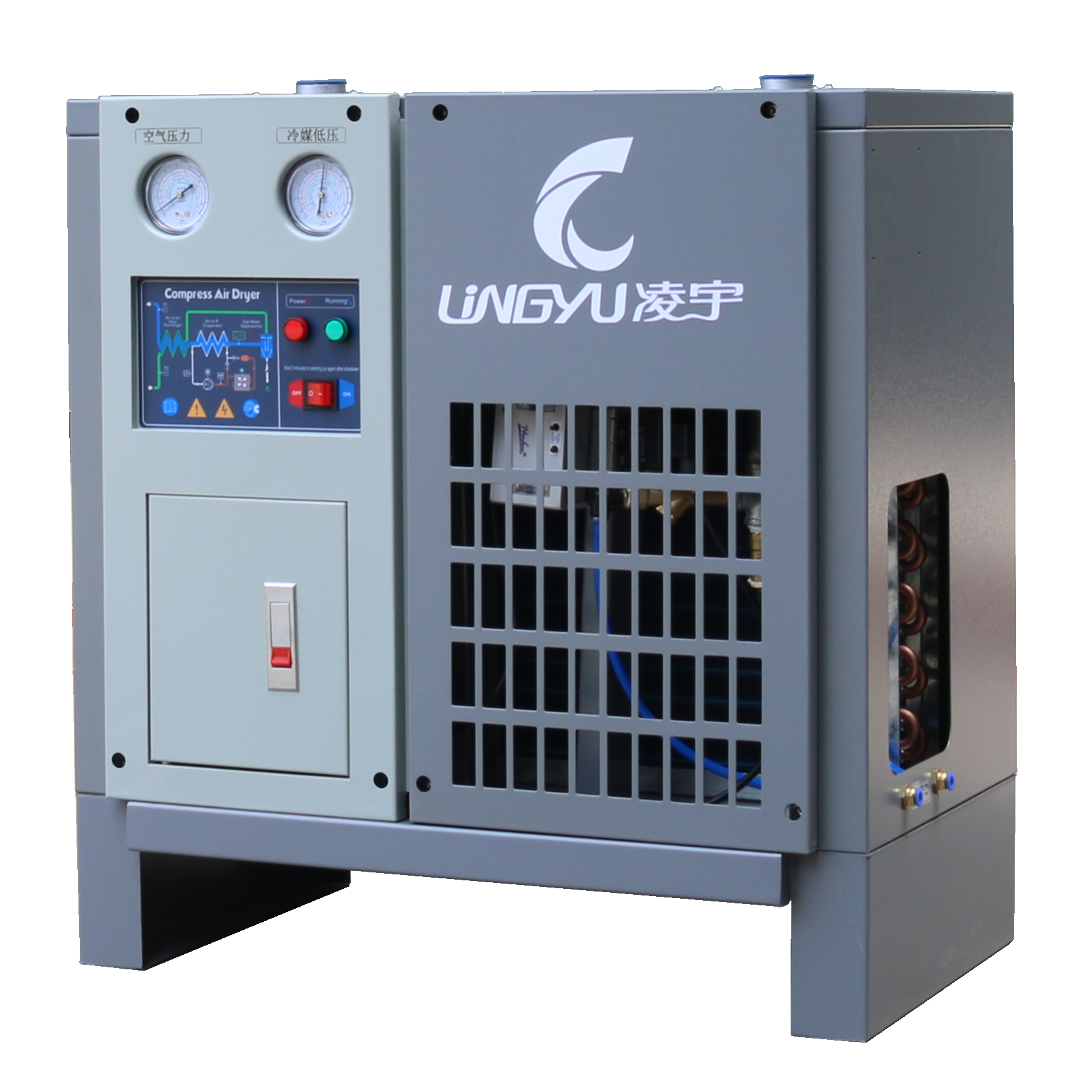

The 25/35/50 CFM Air-Cooled Refrigerated Air Dryer from Lingyu is a compact and energy-efficient solution for small to medium compressed air systems. It efficiently removes moisture and maintains a stable dew point, providing clean, dry air for tools, machinery, and production processes.
With its reliable air-cooled design, low power consumption, and easy operation, this dryer series helps improve air system performance, reduce maintenance costs, and protect equipment from moisture-related damage.
The Lingyu 25/35/50 CFM Refrigerated Air Dryer (Air Cooled) series is engineered for small and medium compressed air systems that need stable, dry air.
Each unit offers efficient moisture removal in a compact footprint, ideal for workshops, laboratories, auto repair shops, and light manufacturing plants.
Our air-cooled design eliminates the need for water cooling, making installation simple and maintenance minimal.
✅ Compact Capacity Range – Choose from 25, 35, or 50 CFM to match your compressor flow.
✅ Air-Cooled Design – No water connection required; perfect for facilities without cooling water.
✅ Stable Dew Point Control – Maintains 2–10°C (35.6–50°F) dew point for consistent dryness.
✅ Energy Efficient – Equipped with low-power refrigeration systems for cost savings.
✅ Automatic Drain Valve – Discharges moisture automatically.
✅ Plug-and-Play Setup – Quick installation and operation in limited spaces.
✅ Durable Construction – Built with powder-coated steel and corrosion-resistant components.
Inlet Air Pressure: 4 – 10 bar (58 – 145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Installation: Indoor, well-ventilated, clean area
Recommended Filters: Use pre- and post-filters for best performance
| Model | Rated Flow | Cooling Method | Refrigerant | Max Pressure | Dew Point | Power Supply | Connection Size | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 25 CFM | 25 CFM | Air Cooled | R134a / R410A | 10 bar | 2–10°C | 220V / 1Ph / 50Hz | ½” NPT | 500×350×550 | 28 kg |
| 35 CFM | 35 CFM | Air Cooled | R134a / R410A | 10 bar | 2–10°C | 220V / 1Ph / 50Hz | ¾” NPT | 550×370×600 | 32 kg |
| 50 CFM | 50 CFM | Air Cooled | R134a / R410A | 10 bar | 2–10°C | 220V / 1Ph / 50Hz | ¾” NPT | 600×400×650 | 38 kg |
The Lingyu 25/35/50 CFM Refrigerated Air Dryer (Air Cooled) series is well suited for small and medium compressed air systems in the Middle East, especially in operating environments affected by high temperatures, dust exposure, and in some coastal areas higher humidity. With its compact footprint, air-cooled design, and simple indoor installation requirements, it is ideal for facilities that need reliable moisture removal and easy day-to-day maintenance.
For Middle East operating conditions, the dryer should be installed in an indoor, clean, and well-ventilated area. Because regional conditions often include heat extremes, sand and dust exposure, and in some coastal zones elevated humidity, the use of pre-filters and post-filters is strongly recommended to improve air quality and help maintain stable long-term performance. Good room ventilation is especially important for air-cooled units in hot climates.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 200 CFM refrigerated air dryer (air cooled) is a compact and efficient solution for removing moisture from compressed air systems. Designed for mid-sized industrial applications, this dryer ensures clean, dry air to protect downstream equipment from corrosion, contamination, and failure.
With air-cooled technology and stable dew point performance, the 200 CFM refrigerated air dryer (air cooled) offers a reliable and energy-saving approach to compressed air drying.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
